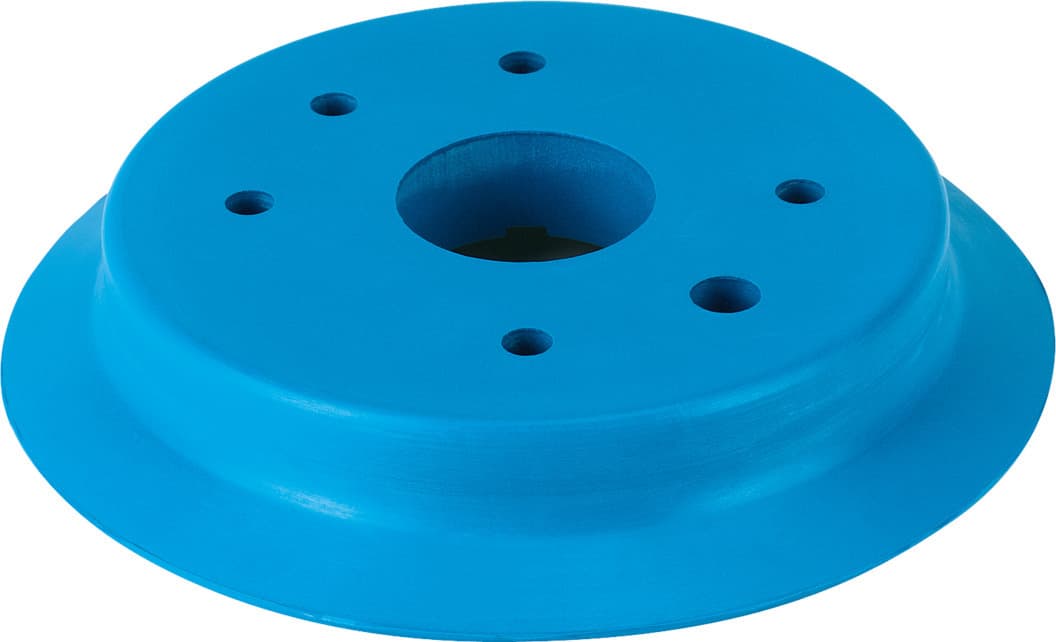

esv-200-su
Product ID:6933
Updated: 2026/7/4
Key Features
- 1Deliver 1610 N holding force for secure part handling.
- 2Construct with durable PUR for extended service life.
- 3Feature a 200mm flat design for optimal surface contact.
- 4Simplify maintenance with quick-replacement design.
- 5Operate from -30°C to +200°C for versatility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 680mm | Suction cup diameter | 200mm |
| Suction cup volume | 245.454cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 1610N |
| Product weight | 840g | Color | Blue |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 191016 |
Specifications may be subject to change without notice
