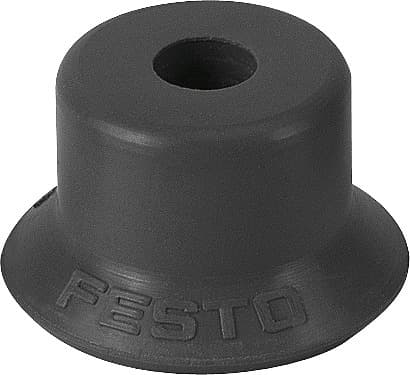

esv-20-ef
Product ID:6939
Updated: 2026/7/4
Key Features
- 1Feature a 20mm diameter and 0.722 cm³ volume for versatile applications.
- 2Provide 17N holding force for reliable and efficient industrial operation.
- 3Ensure food-safe compliance for use in the food industry.
- 4Operate from -10°C to 200°C for flexible environmental use.
- 5Construct from durable, RoHS-compliant FPM material for long life.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Suction cup diameter | 20mm |
| Suction cup volume | 0.722cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 17N |
| Product weight | 1.6g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191026 |
Specifications may be subject to change without notice
