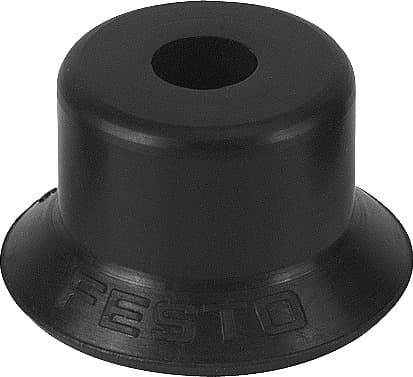

esv-20-en
Product ID:6936
Updated: 2026/7/4
Key Features
- 1Deliver a high 17 N holding force for reliable workpiece handling.
- 2Utilize food-safe NBR material for compliant operations.
- 3Operate effectively across a wide -10°C to +70°C temperature range.
- 4Feature a deep bellows shape for secure gripping and easy mounting.
- 5Ensure durability and resistance in various industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Suction cup diameter | 20mm |
| Suction cup volume | 0.722cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 17N |
| Product weight | 1.6g | Color | Black |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 191023 |
Specifications may be subject to change without notice
