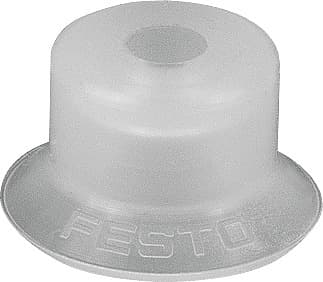

esv-20-es
Product ID:6938
Updated: 2026/7/4
Key Features
- 1Secure grip with a 20mm round, extra-deep shape.
- 2Deliver strong vacuum via 0.722 cm³ cup volume.
- 3Operate reliably from -30 to 180°C.
- 4Ensure food safety without copper or PTFE.
- 5Handle easily with a 1.6g transparent design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Suction cup diameter | 20mm |
| Suction cup volume | 0.722cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 17N |
| Product weight | 1.6g | Color | Transparent |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 191025 |
Specifications may be subject to change without notice
