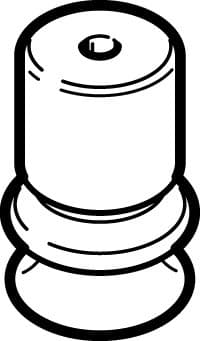

esv-30-bn
Product ID:6967
Updated: 2026/7/4
Key Features
- 1Grip workpieces securely with a 30mm bellows design.
- 2Construct the cup from copper-free NBR for broad compatibility.
- 3Connect easily using the standard M6 threaded pneumatic port.
- 4Operate reliably in temperatures from -10°C to +70°C.
- 5Ensure environmental compliance with RoHS certification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 8mm | Min. workpiece radius | 80mm |
| Suction cup diameter | 30mm | Suction cup volume | 4.07cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 26.2N | Product weight | 3.6g |
| Color | Black | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 191057 |
Specifications may be subject to change without notice
