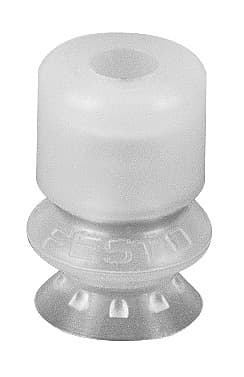

esv-30-bs
Product ID:6969
Updated: 2026/7/4
Key Features
- 1Ensure stable operation with 8mm height compensation.
- 2Grip workpieces securely with 30mm diameter and 4.07 cm³ volume.
- 3Meet food safety standards with VDMA24364 zone III compliance.
- 4Operate reliably from -30°C to 180°C ambient temperature.
- 5Utilize durable VMQ silicone material with 50 Shore hardness.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 8mm | Min. workpiece radius | 80mm |
| Suction cup diameter | 30mm | Suction cup volume | 4.07cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 26.2N | Product weight | 3.6g |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 191059 |
Specifications may be subject to change without notice
