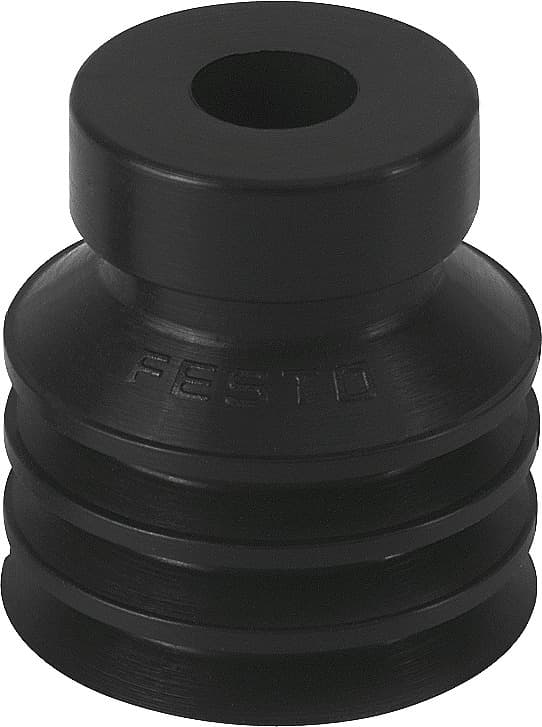

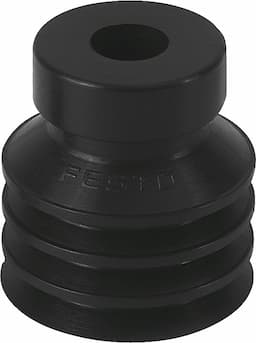

esv-30-cn
Product ID:6982
Updated: 2026/4/3
Key Features
- 1Ensure consistent performance with a 10.5 mm height compensator. 2、Utilize NBR material suitable for food handling applications. 3、Rely on robust construction with a round bellows shape and 3.5 convolutions. 4、Operate within a wide pressure range from -95 kPa to 0 kPa. 5、Simplify installation with top connection and optional mounting positions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 10.5mm | Min. workpiece radius | 80mm |
| Suction cup diameter | 30mm | Suction cup volume | 9.47cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 20.8N | Product weight | 5.8g |
| Color | Black | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 191073 |
Specifications may be subject to change without notice
