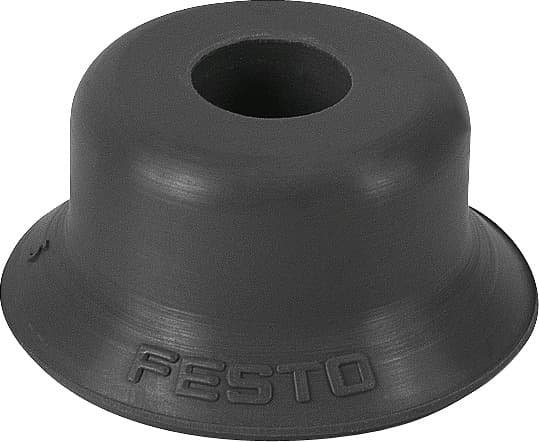

esv-30-ef
Product ID:6943
Updated: 2026/7/4
Key Features
- 1Handle ESD-sensitive components safely with the Festo ESV-30-EF.
- 2Mount the suction cup in any position for flexible integration.
- 3Utilize durable FPM material for corrosion resistance.
- 4Operate reliably across a -10°C to 200°C temperature range.
- 5Achieve a strong 37.2 N holding force for secure gripping.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
| Suction cup volume | 1.952cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 37.2N |
| Product weight | 2.9g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191030 |
Specifications may be subject to change without notice
