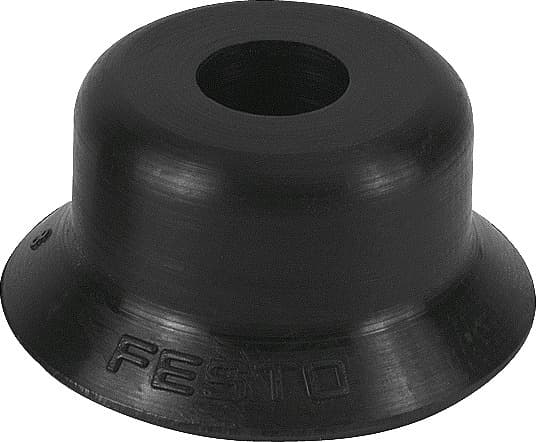

esv-30-en
Product ID:6940
Updated: 2026/4/3
Key Features
- 1Secure a strong grip with a 30 mm round, extra-deep design. 2、Operate reliably in temperatures from -10°C to 70°C. 3、Achieve robust retention with 37.2 N holding force. 4、Ensure food safety with copper/PTFE-free NBR material. 5、Simplify assembly via the top connection position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
| Suction cup volume | 1.952cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 37.2N |
| Product weight | 2.9g | Color | Black |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 191027 |
Specifications may be subject to change without notice
