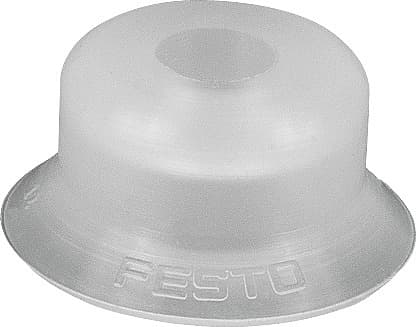

esv-30-es
Product ID:6942
Updated: 2026/4/3
Key Features
- 1Secure workpieces with a 37.2 N holding force. 2、Operate reliably in temperatures from -30 to 180°C. 3、Ensure food safety with copper and PTFE-free VMQ silicon. 4、Achieve clear visibility using the transparent suction cup design. 5、Reduce weight with a lightweight 2.9-gram construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
| Suction cup volume | 1.952cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 37.2N |
| Product weight | 2.9g | Color | Transparent |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 191029 |
Specifications may be subject to change without notice
