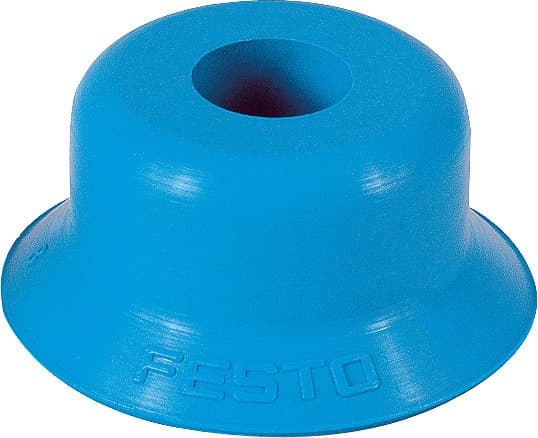

esv-30-eu
Product ID:6941
Updated: 2026/7/4
Key Features
- 1Secure workpieces with a high retention force of 37.2N.
- 2Ensure food safety using certified Polyurethane (PUR) material.
- 3Install flexibly in any assembly position for versatile use.
- 4Withstand harsh conditions from -20 to 60°C.
- 5Minimize downtime with easily replaceable wearing parts.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 50mm | Suction cup diameter | 30mm |
| Suction cup volume | 1.952cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 37.2N |
| Product weight | 2.9g | Color | Blue |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 191028 |
Specifications may be subject to change without notice
