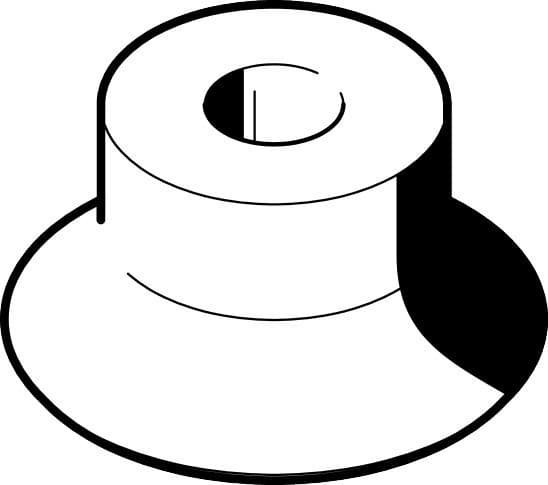

esv-30-gt
Product ID:8925
Updated: 2026/7/4
Key Features
- 1Secure workpieces with a 30 mm diameter round, deep suction cup.
- 2Achieve reliable 36 N breakaway force at 70% vacuum.
- 3Ensure durability with RoHS-compliant, corrosion-resistant Vulkollan material.
- 4Adapt to workpiece radii using the integrated 3.5 mm height compensator.
- 5Operate reliably in temperatures from -10°C to 80°C with standard pneumatic air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3.5mm | Min. workpiece radius | 26mm |
| Suction cup diameter | 30mm | Suction cup volume | 2.4cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 36N |
| Holding force at nominal operating pressure | 36N | Lateral force at nominal operating pressure | 13N |
| Product weight | 4.2g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526000 |
Specifications may be subject to change without notice
