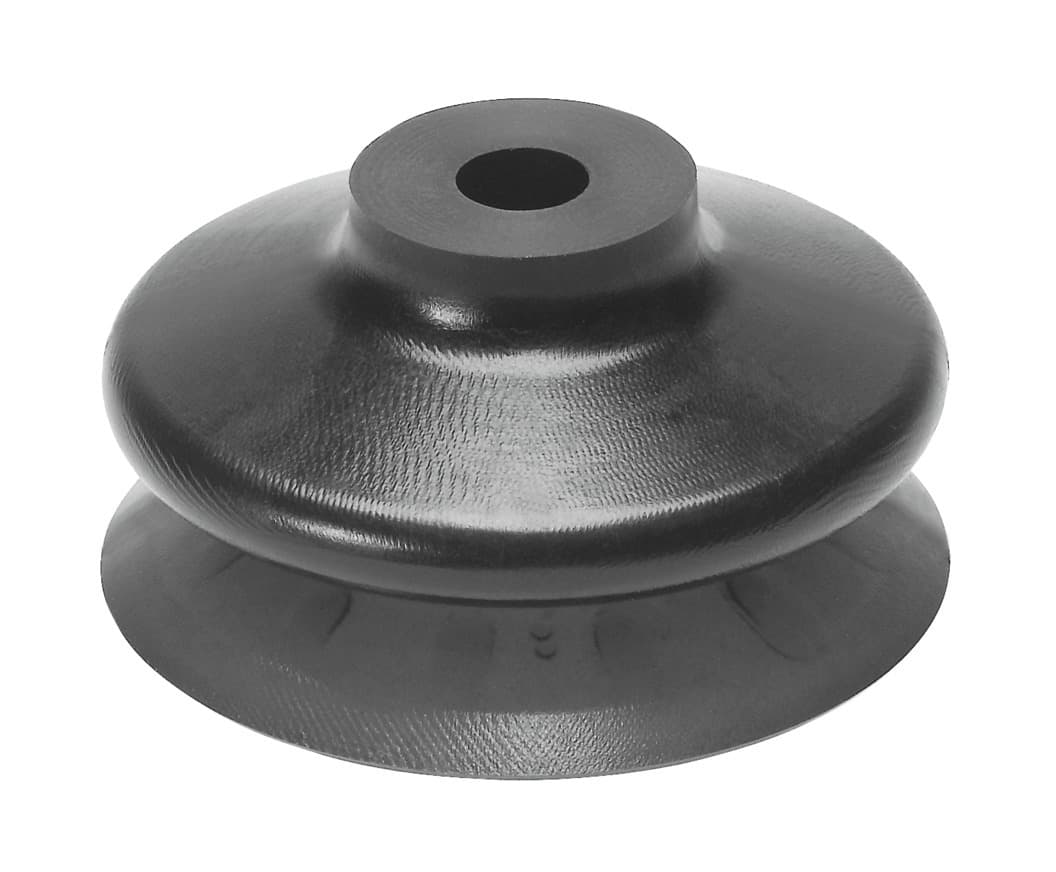

esv-40-bt
Product ID:8931
Updated: 2026/7/4
Key Features
- 1Secure workpieces with a round bellows design and 1.5 convolutions.
- 2Achieve 59 N holding force using a 40 mm diameter suction cup.
- 3Ensure durability with RoHS-compliant, copper-free Vulkollan material.
- 4Operate reliably in ambient temperatures from -10 °C to 80 °C.
- 5Install easily via vacuum port with a lightweight 10.5-gram design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 9mm | Min. workpiece radius | 35mm |
| Suction cup diameter | 40mm | Suction cup volume | 9.8cm3 |
| Mounting position | Any | Structural design | Bellows |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 59N |
| Holding force at nominal operating pressure | 59N | Lateral force at nominal operating pressure | 22N |
| Product weight | 10.5g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526006 |
Specifications may be subject to change without notice
