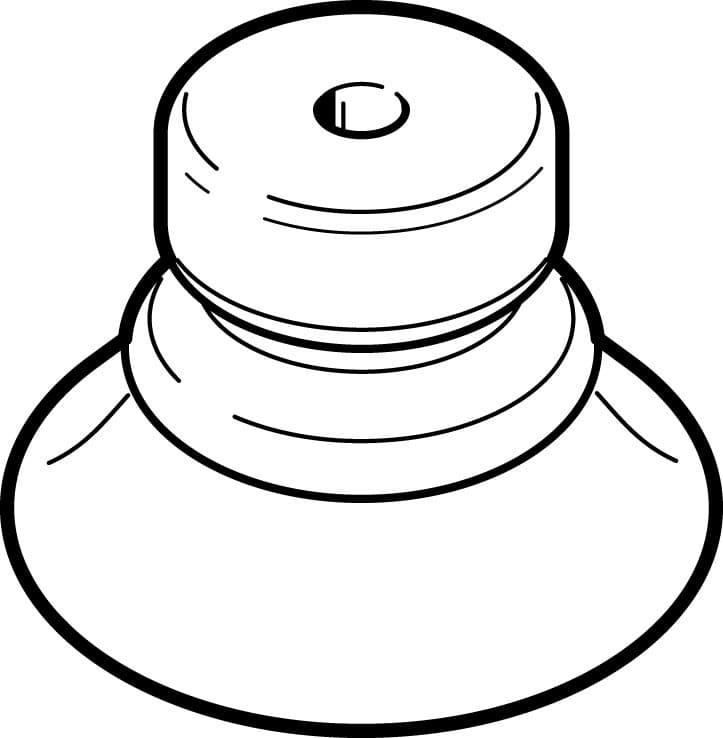

esv-40-bu
Product ID:6971
Updated: 2026/7/4
Key Features
- 1Feature a 40mm diameter and 11.699 cm³ volume for versatile applications.
- 2Provide 52.3 N holding force at nominal pressure for reliable handling.
- 3Utilize a round bellows design for flexible mounting and adaptability.
- 4Operate from -20 °C to 60 °C for use in diverse environments.
- 5Ensure RoHS compliance and food suitability with durable PUR material.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 9.5mm | Min. workpiece radius | 90mm |
| Suction cup diameter | 40mm | Suction cup volume | 11.699cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 52.3N | Product weight | 9.8g |
| Color | Blue | Shore hardness | 60 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 191061 |
Specifications may be subject to change without notice
