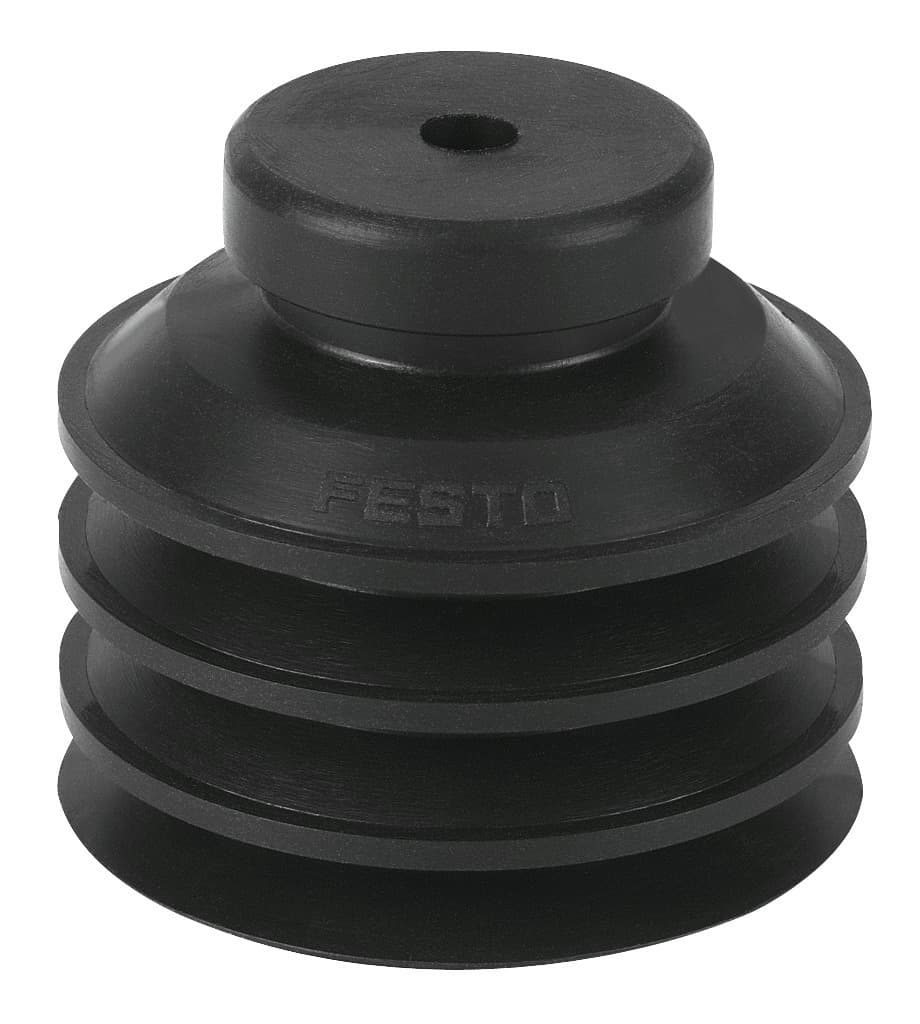

esv-40-cn
Product ID:6984
Updated: 2026/7/4
Key Features
- 1Feature a 40mm diameter and 19.72 cm³ volume for broad application suitability.
- 2Deliver 42.4 N holding force for reliable and efficient workpiece handling.
- 3Incorporate a 12.8 mm height compensator for precise positioning and size adaptation.
- 4Utilize durable NBR material resistant to temperatures from -10°C to 70°C.
- 5Ensure RoHS compliance and food safety for critical industry applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 12.8mm | Min. workpiece radius | 100mm |
| Suction cup diameter | 40mm | Suction cup volume | 19.72cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 42.4N | Product weight | 13g |
| Color | Black | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 191075 |
Specifications may be subject to change without notice
