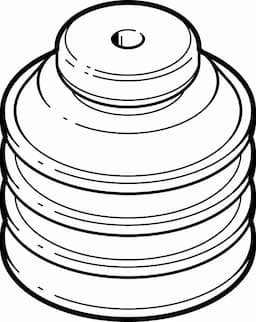

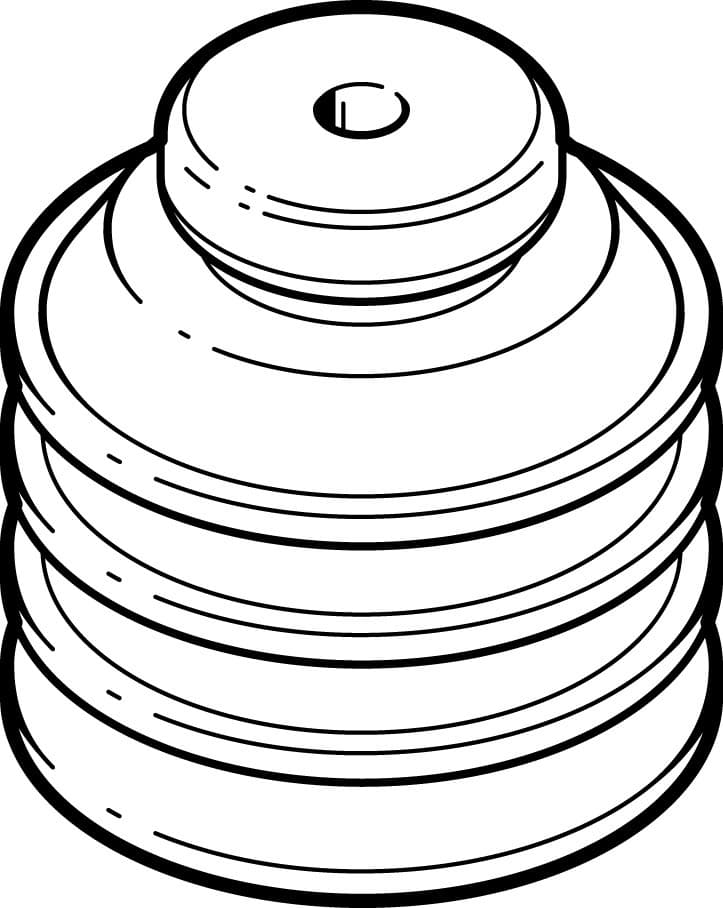

esv-40-cs
Product ID:6985
Updated: 2026/7/4
Key Features
- 1Ensure consistent suction with a 12.8 mm height compensator.
- 2Meet RoHS and food industry standards with VMQ silicone material.
- 3Mount the suction cup in any position for flexible setup.
- 4Achieve a reliable 42.4 N holding force at -70 kPa.
- 5Operate in a wide temperature range from -30 °C to 180 °C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 12.8mm | Min. workpiece radius | 100mm |
| Suction cup diameter | 40mm | Suction cup volume | 19.72cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 42.4N | Product weight | 13g |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 191076 |
Specifications may be subject to change without notice
