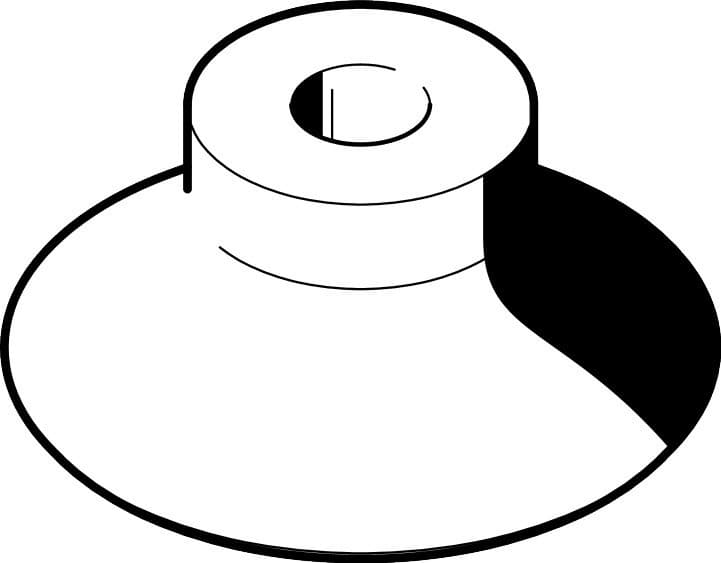

esv-40-gt
Product ID:8926
Updated: 2026/4/3
Key Features
- 1Secure a reliable grip with the 40mm round, bell-shaped design. 2、Ensure environmental compliance using copper-free, PTFE-free Vulkollan material. 3、Achieve precise positioning with a 5.5 mm height compensator. 4、Operate versatile pneumatic applications from -0.95 to 0 bar. 5、Simplify maintenance through easy interchangeability in industrial settings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 5.5mm | Min. workpiece radius | 35mm |
| Suction cup diameter | 40mm | Suction cup volume | 5.4cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 54N |
| Holding force at nominal operating pressure | 64N | Lateral force at nominal operating pressure | 20N |
| Product weight | 5.7g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526001 |
Specifications may be subject to change without notice
