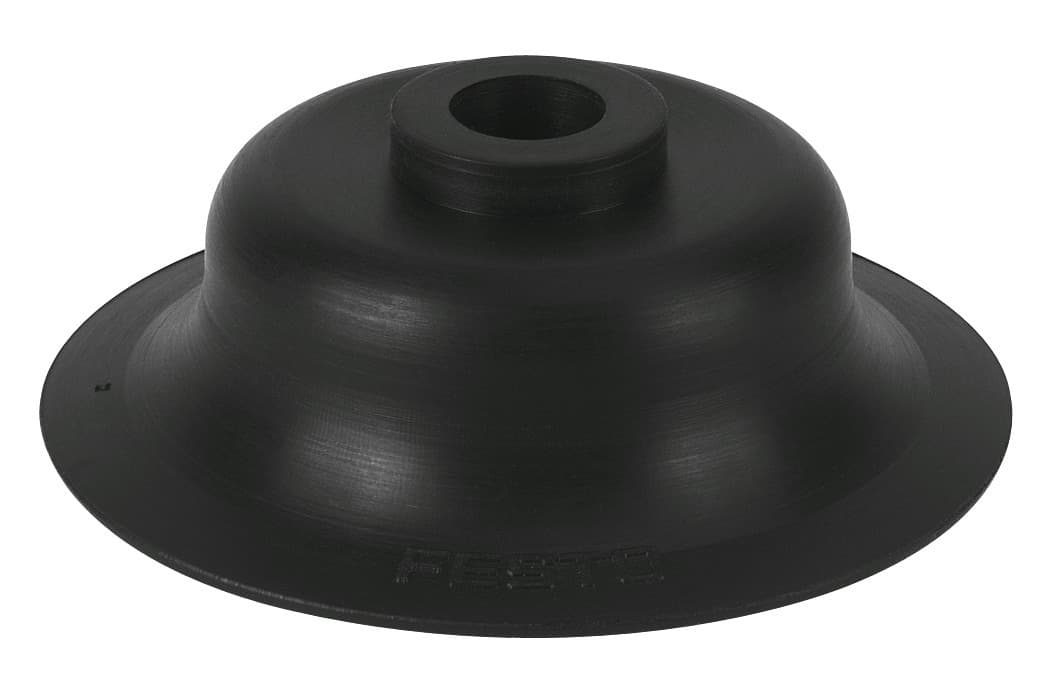

esv-40-sn
Product ID:6906
Updated: 2026/7/4
Key Features
- 1Grip workpieces securely with a 40mm diameter, flat suction cup.
- 2Operate reliably across a wide -10°C to 70°C temperature range.
- 3Ensure food safety with LABS (PWIS) conformity and NBR material.
- 4Achieve 69.6 N holding force at a nominal -0.07 MPa pressure.
- 5Replace easily with this lightweight, 7.4-gram black suction cup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 230mm | Suction cup diameter | 40mm |
| Suction cup volume | 1.566cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 69.6N |
| Product weight | 7.4g | Color | Black |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 190989 |
Specifications may be subject to change without notice
