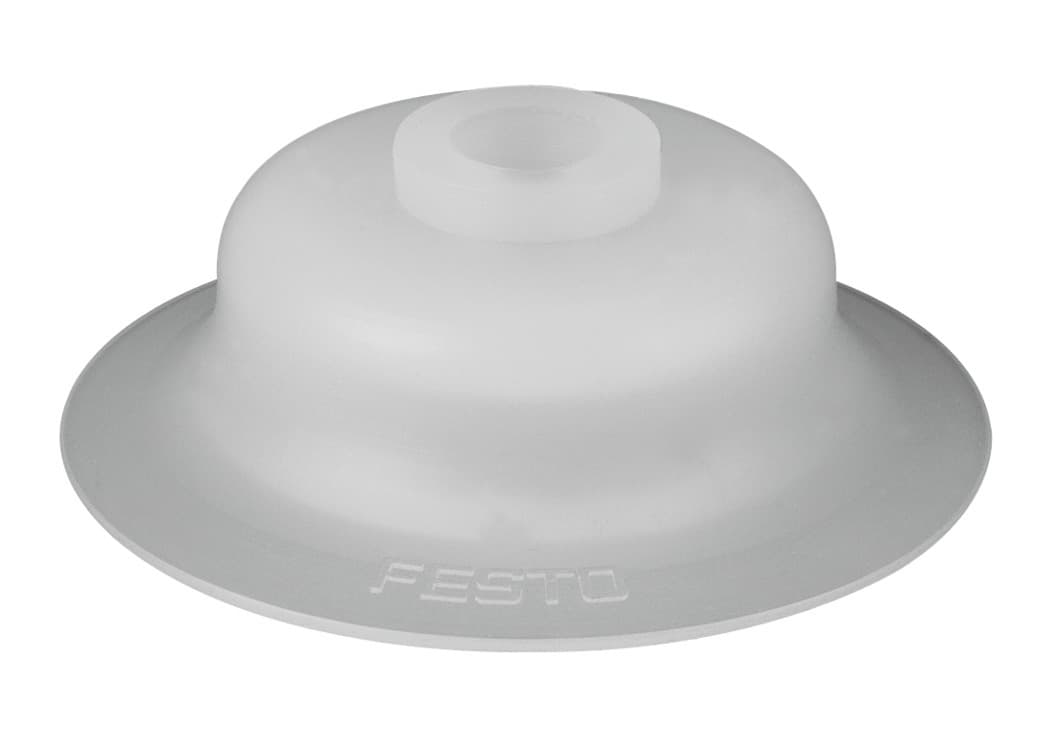

esv-40-ss
Product ID:6908
Updated: 2026/7/4
Key Features
- 1Deliver a robust 69.6N holding force for strong suction.
- 2Provide a wide 40mm flat pad diameter for effective gripping.
- 3Construct from flexible VMQ silicone material for durability.
- 4Operate across a wide -30°C to 180°C temperature range.
- 5Ensure compatibility with atmospheric air and ISO 8573-1:2010 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 230mm | Suction cup diameter | 40mm |
| Suction cup volume | 1.566cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 69.6N |
| Product weight | 7.4g | Color | Transparent |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 190991 |
Specifications may be subject to change without notice
