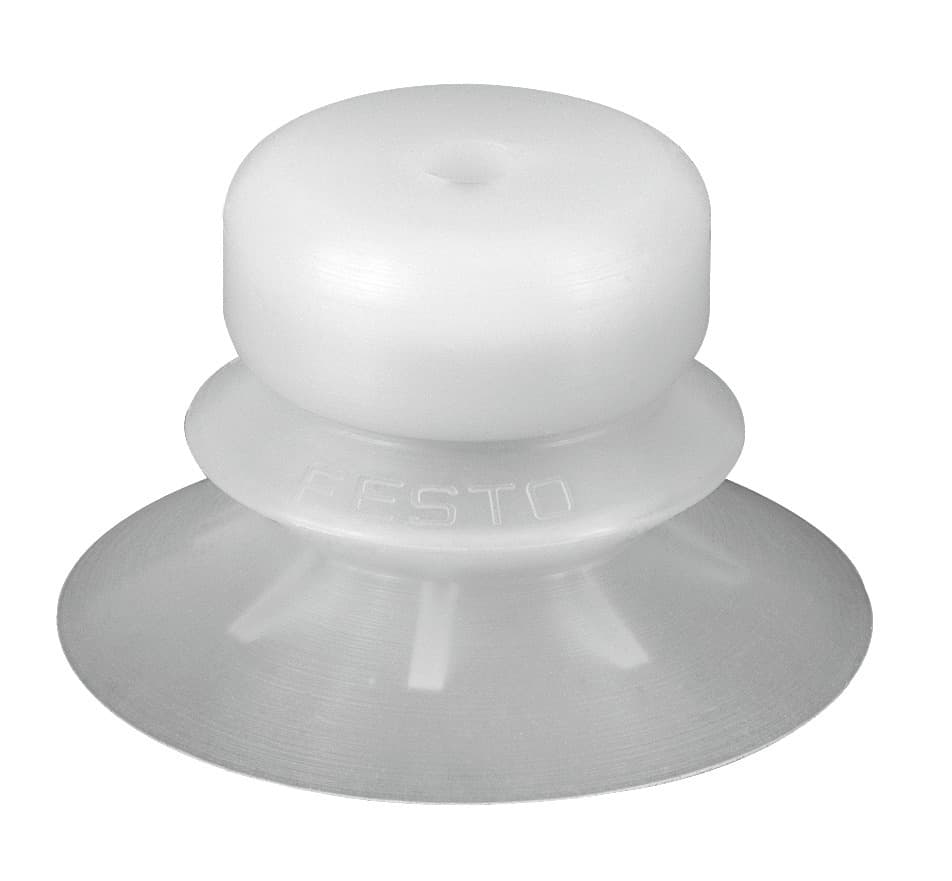

esv-50-bs
Product ID:6975
Updated: 2026/4/3
Key Features
- 1Deliver 72.6N holding force for reliable gripping. 2、Provide 11mm height compensation for varied workpieces. 3、Operate from -30°C to 180°C for versatile use. 4、Ensure precision with a 50mm bellows suction cup. 5、Maintain performance per ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 11mm | Min. workpiece radius | 150mm |
| Suction cup diameter | 50mm | Suction cup volume | 14.23cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 72.6N | Product weight | 13.9g |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 191065 |
Specifications may be subject to change without notice
