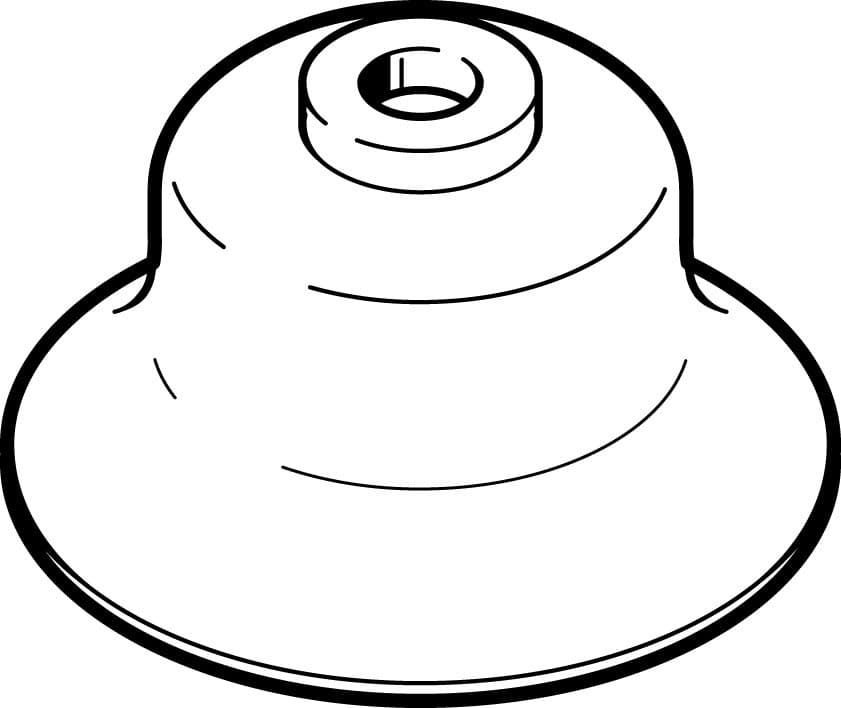

esv-50-ef
Product ID:6951
Updated: 2026/7/4
Key Features
- 1Secure workpieces with 103.6 N retention force.
- 2Handle diverse shapes with a 100mm min. radius.
- 3Ensure durability using corrosion-resistant FPM material.
- 4Simplify maintenance with an easily replaceable design.
- 5Optimize uptime by reducing part replacement downtime.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 100mm | Suction cup diameter | 50mm |
| Suction cup volume | 8.168cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 103.6N |
| Product weight | 12.6g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191038 |
Specifications may be subject to change without notice
