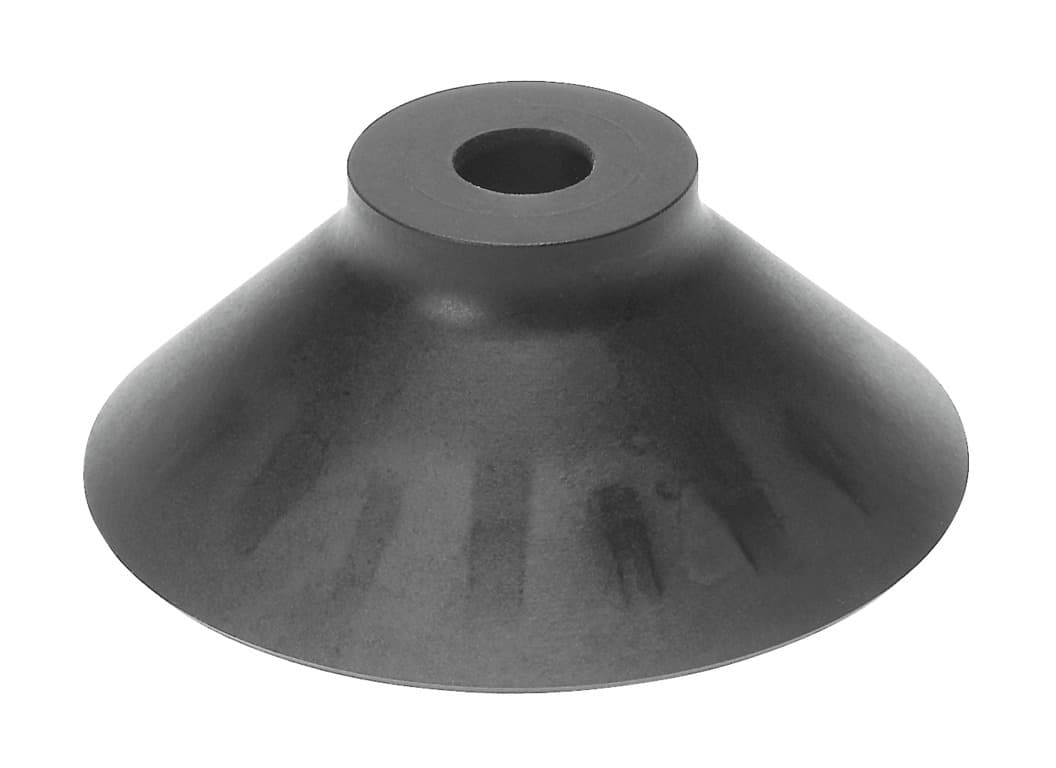

esv-50-gt
Product ID:8927
Updated: 2026/7/4
Key Features
- 1Secure a reliable grip with the round, bellows-shaped ESV-50-GT.
- 2Ensure durability using high-quality polyurethane material.
- 3Handle diverse tasks with a robust 97N holding force.
- 4Meet safety standards with RoHS compliance, free of copper and PTFE.
- 5Simplify integration via compatibility with the Festo ESS system.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 8mm | Min. workpiece radius | 40mm |
| Suction cup diameter | 50mm | Suction cup volume | 11.2cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 97N |
| Holding force at nominal operating pressure | 97N | Lateral force at nominal operating pressure | 30N |
| Product weight | 9.2g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526002 |
Specifications may be subject to change without notice
