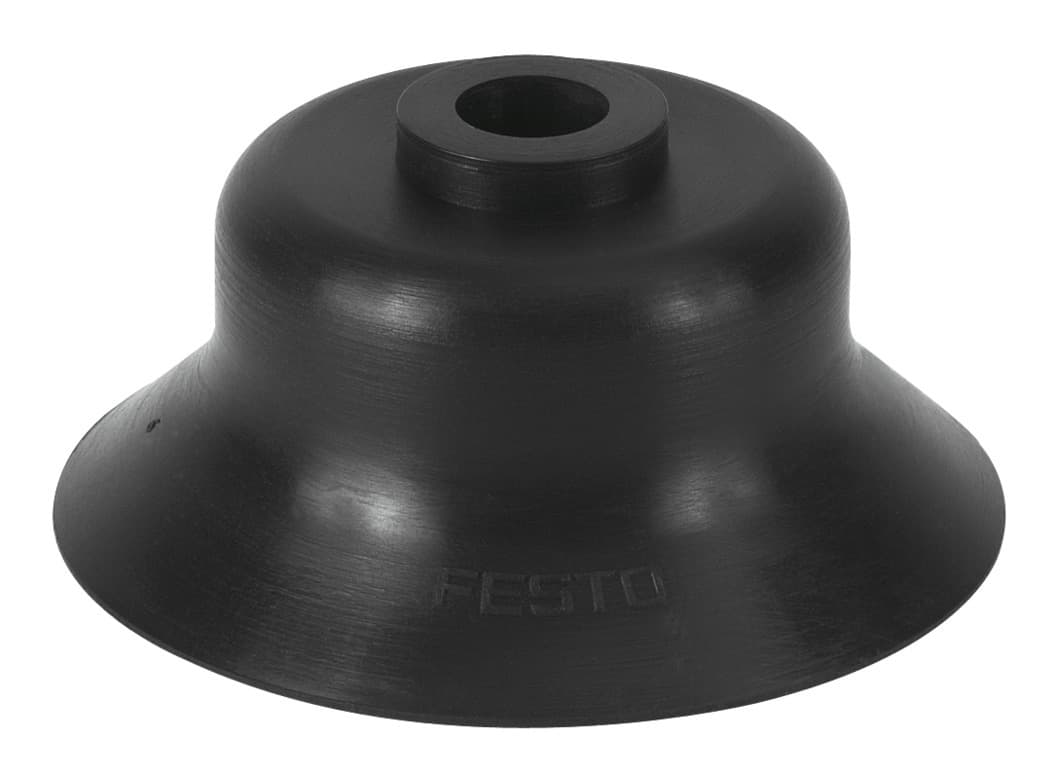

esv-60-en
Product ID:6952
Updated: 2026/7/4
Key Features
- 1Deliver 162.5 N high retention force for reliable gripping.
- 2Ensure food safety with compliant NBR material and RoHS.
- 3Mount in any position for flexible application setups.
- 4Operate from -10°C to 70°C in diverse environments.
- 5Reduce downtime with an easily replaceable wearing part.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 120mm | Suction cup diameter | 60mm |
| Suction cup volume | 14.445cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 162.5N |
| Product weight | 21g | Shore hardness | 60 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 191039 |
Specifications may be subject to change without notice
