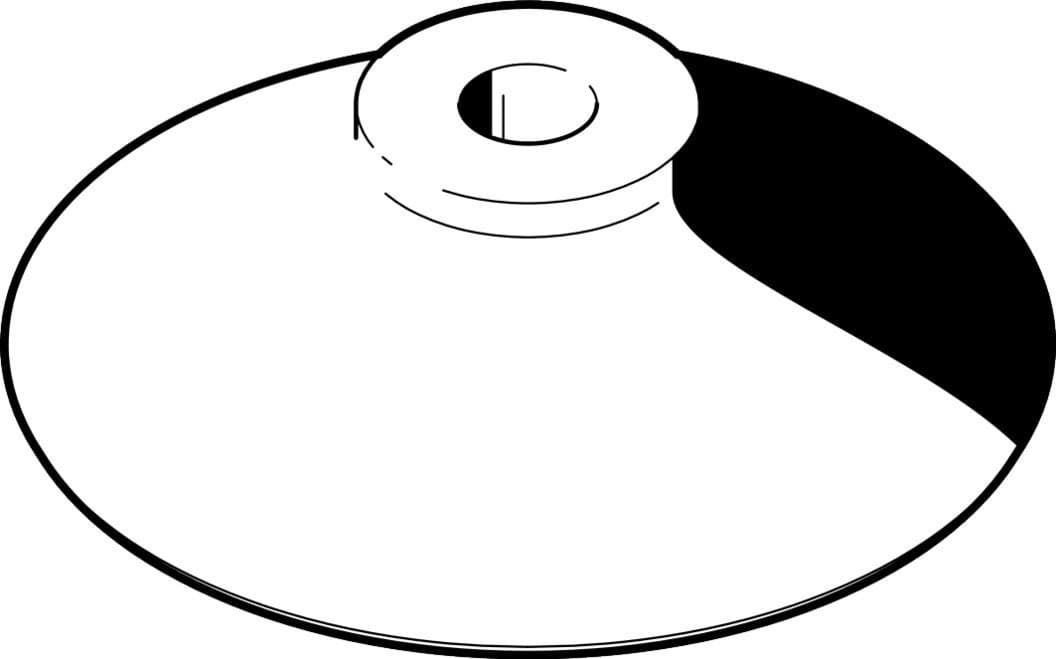

esv-60-gt
Product ID:8928
Updated: 2026/4/3
Key Features
- 1Secure workpieces with a robust 134N holding force. 2、Adapt easily using the round, 60mm bell-shaped interchangeable design. 3、Operate reliably in diverse environments from -10°C to +80°C. 4、Ensure safety with copper/PTFE-free Vulkollan and RoHS compliance. 5、Simplify installation via the integrated 6mm height compensator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
| Suction cup diameter | 60mm | Suction cup volume | 11.3cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 134N |
| Holding force at nominal operating pressure | 134N | Lateral force at nominal operating pressure | 37N |
| Product weight | 10.7g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526003 |
Specifications may be subject to change without notice
