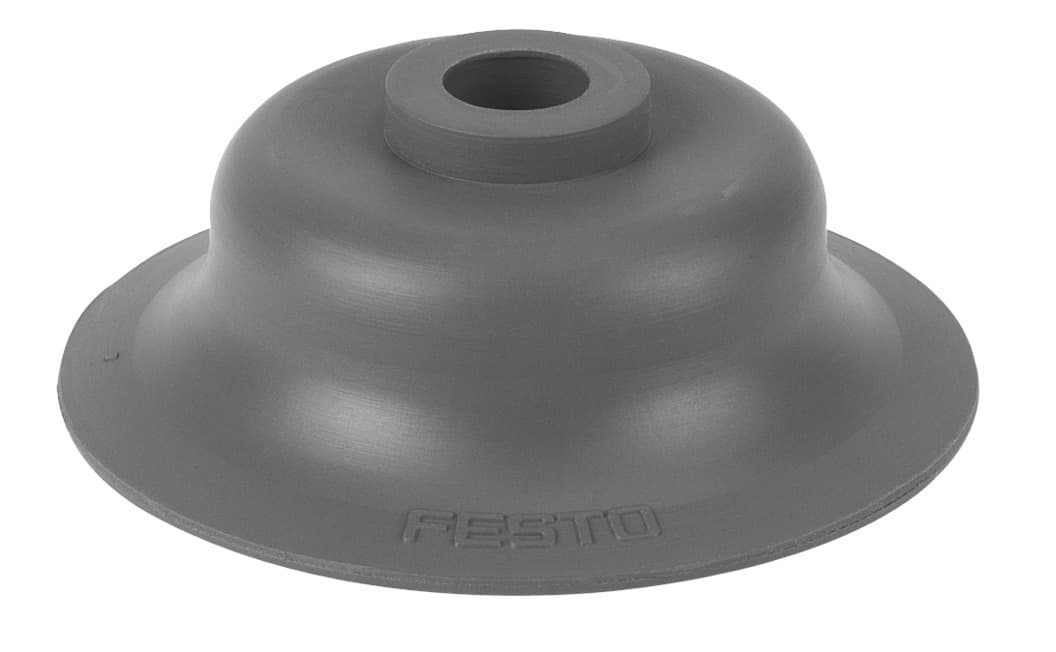

esv-60-sf
Product ID:6919
Updated: 2026/7/4
Key Features
- 1Deliver a high holding force of 166.1 N for secure gripping.
- 2Operate across a wide temperature range from -10°C to 200°C.
- 3Ensure ESD compliance with RoHS-certified, copper/PTFE-free construction.
- 4Mount in any position for versatile installation flexibility.
- 5Construct from durable FPM material for long-lasting wear resistance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 350mm | Suction cup diameter | 60mm |
| Suction cup volume | 3.953cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 166.1N |
| Product weight | 22g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191002 |
Specifications may be subject to change without notice
