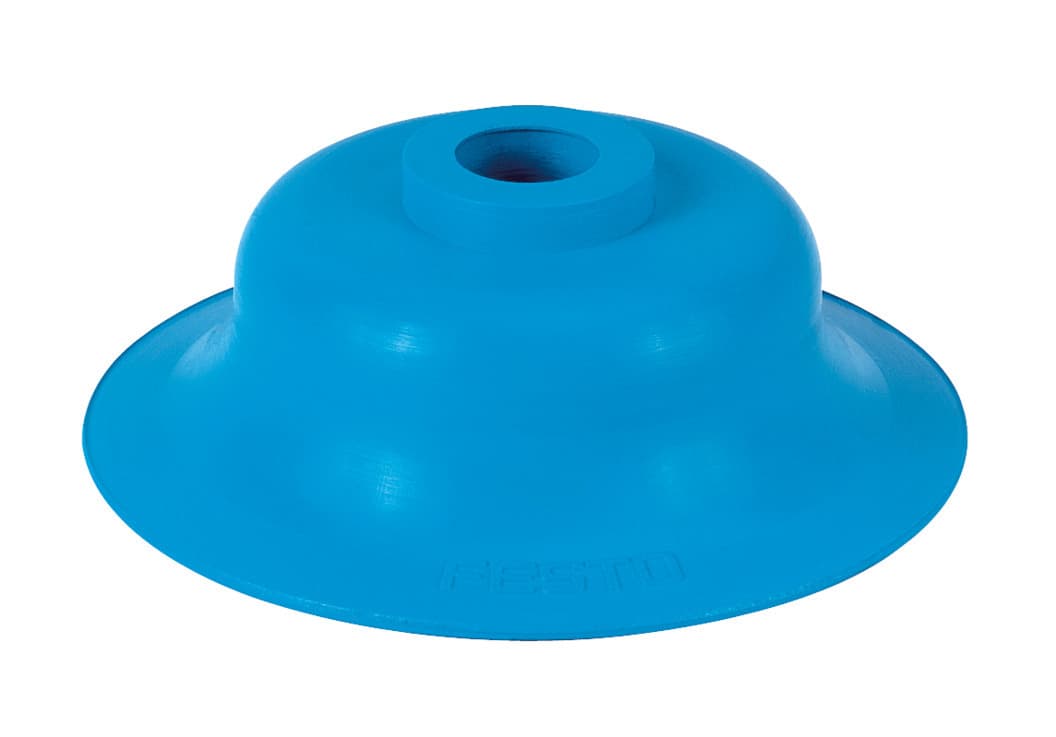

esv-60-su
Product ID:6917
Updated: 2026/4/3
Key Features
- 1Handle workpieces precisely with a 60 mm diameter and 350 mm minimum radius. 2、Achieve a 166.1 N holding force at a nominal -70 kPa operating pressure. 3、Ensure food safety with LABS (PWIS) and VDMA24364 zone III conformity. 4、Operate reliably in ambient temperatures from -20 °C to 60 °C. 5、Benefit from durable, RoHS-compliant PUR construction with 60 +/- 5 shore hardness.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 350mm | Suction cup diameter | 60mm |
| Suction cup volume | 3.953cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 166.1N |
| Product weight | 22g | Color | Blue |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 191000 |
Specifications may be subject to change without notice
