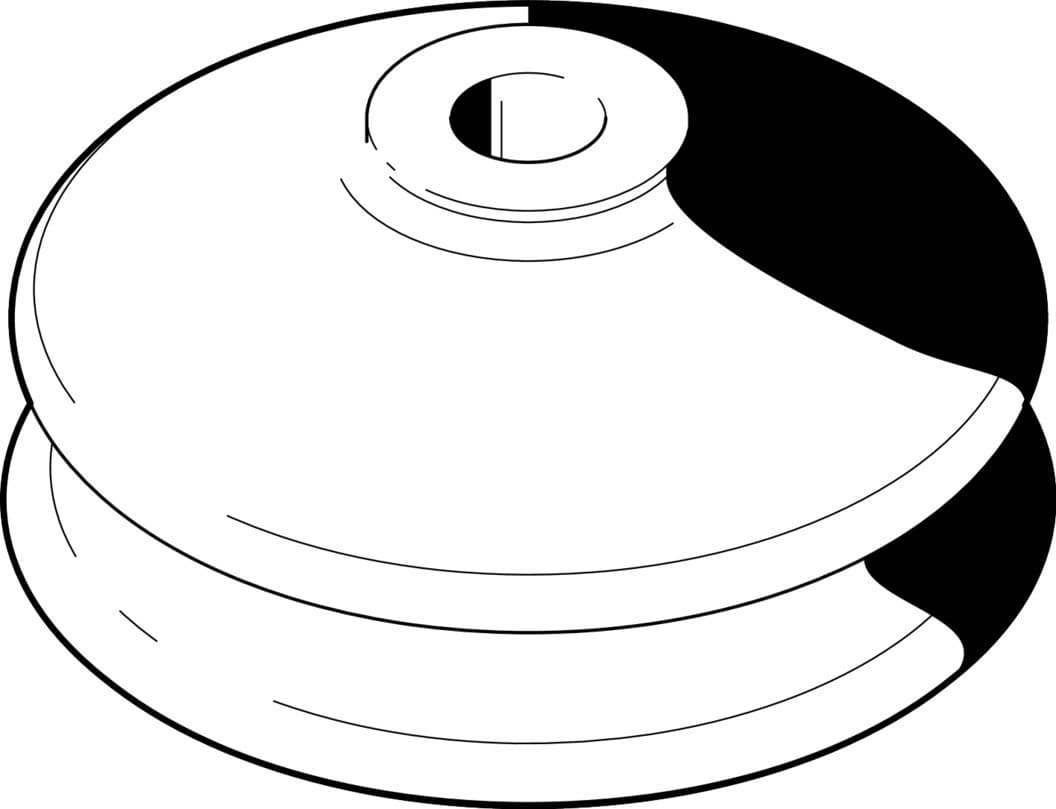

esv-80-bt
Product ID:8933
Updated: 2026/7/4
Key Features
- 1Deliver 237 N holding force for secure gripping.
- 2Operate across a -10°C to +80°C temperature range.
- 3Feature durable, RoHS-compliant Vulkollan material construction.
- 4Include a 10.5 mm height compensator for versatile mounting.
- 5Provide reliable vacuum performance with 1.5 convolutions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10.5mm | Min. workpiece radius | 100mm |
| Suction cup diameter | 80mm | Suction cup volume | 59.1cm3 |
| Mounting position | Any | Structural design | Bellows |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 237N |
| Holding force at nominal operating pressure | 237N | Lateral force at nominal operating pressure | 102N |
| Product weight | 57.2g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526008 |
Specifications may be subject to change without notice
