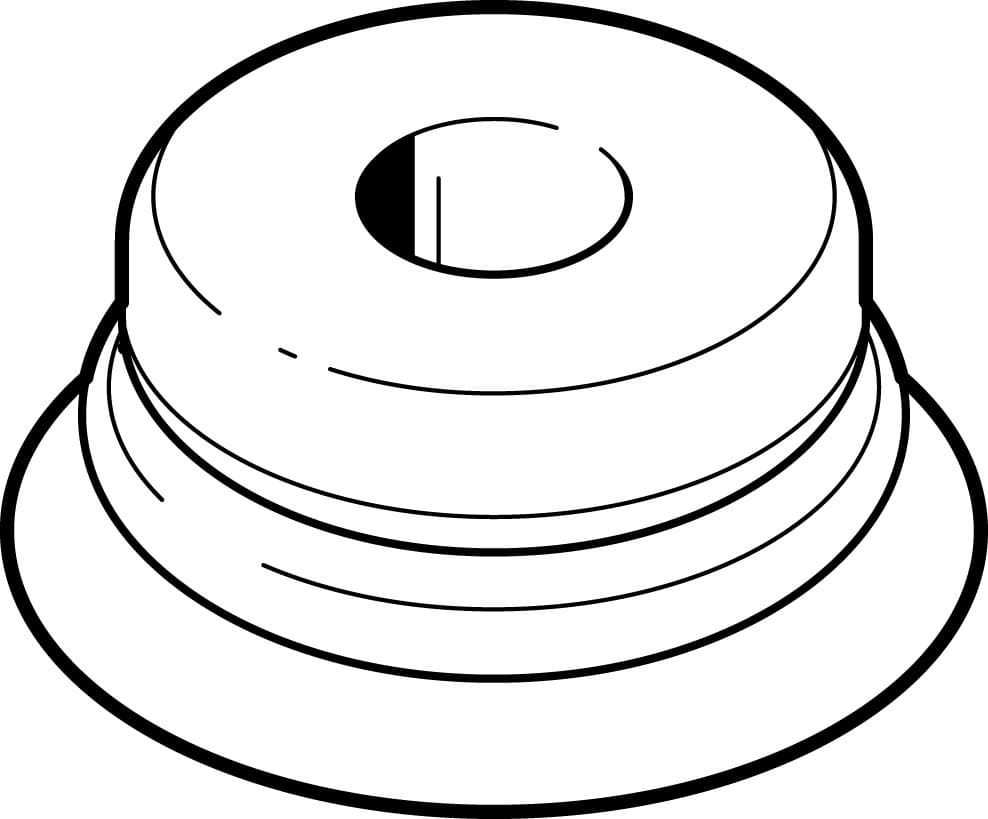

esv-80-bu
Product ID:6977
Updated: 2026/4/3
Key Features
- 1Deliver 213.6 N retention force for secure workpiece gripping. 2、Withstand temperatures from -20°C to 60°C with durable PUR material. 3、Meet food industry standards for safe applications per manufacturer. 4、Mount flexibly via vacuum port in any assembly position. 5、Replace easily as a wearing part to minimize downtime.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 10mm | Min. workpiece radius | 430mm |
| Suction cup diameter | 80mm | Suction cup volume | 63.9cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 213.6N | Product weight | 39g |
| Color | Blue | Shore hardness | 60 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 191067 |
Specifications may be subject to change without notice
