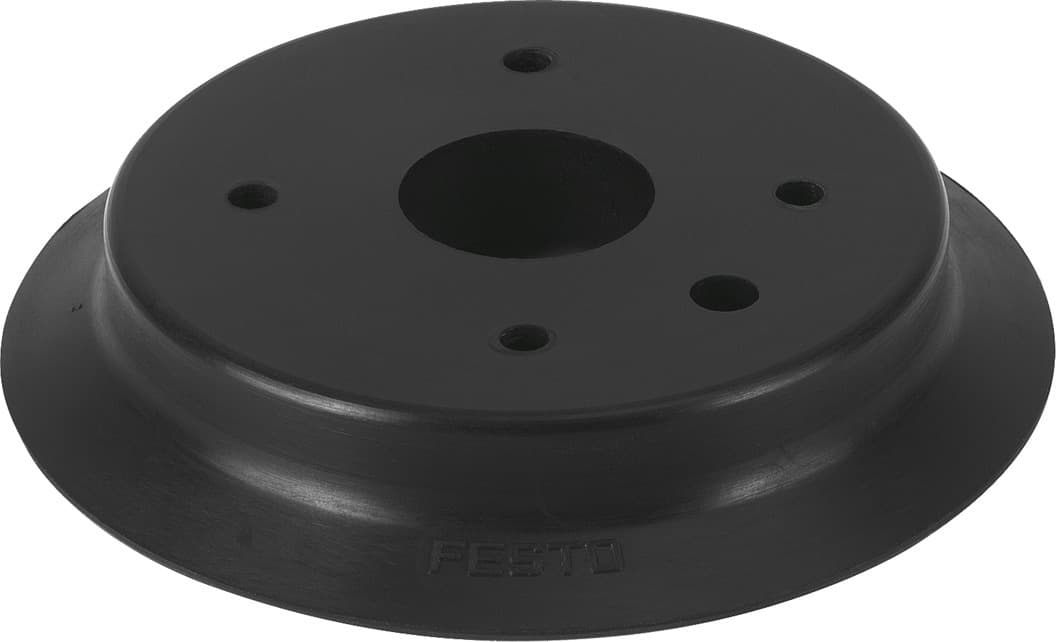

esv-80-ef
Product ID:6959
Updated: 2026/4/3
Key Features
- 1Withstand temperatures up to +200°C for demanding applications. 2、Replace easily as a wearing part to minimize downtime. 3、Grip effectively with an 80mm diameter and large surface area. 4、Connect securely via the standard M10 threaded vacuum port. 5、Handle various industrial assembly and positioning tasks reliably.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 160mm | Suction cup diameter | 80mm |
| Suction cup volume | 44.18cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 275N |
| Product weight | 41g | Color | Gray |
| Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | FPM | Manufacturer ID | 191046 |
Specifications may be subject to change without notice
