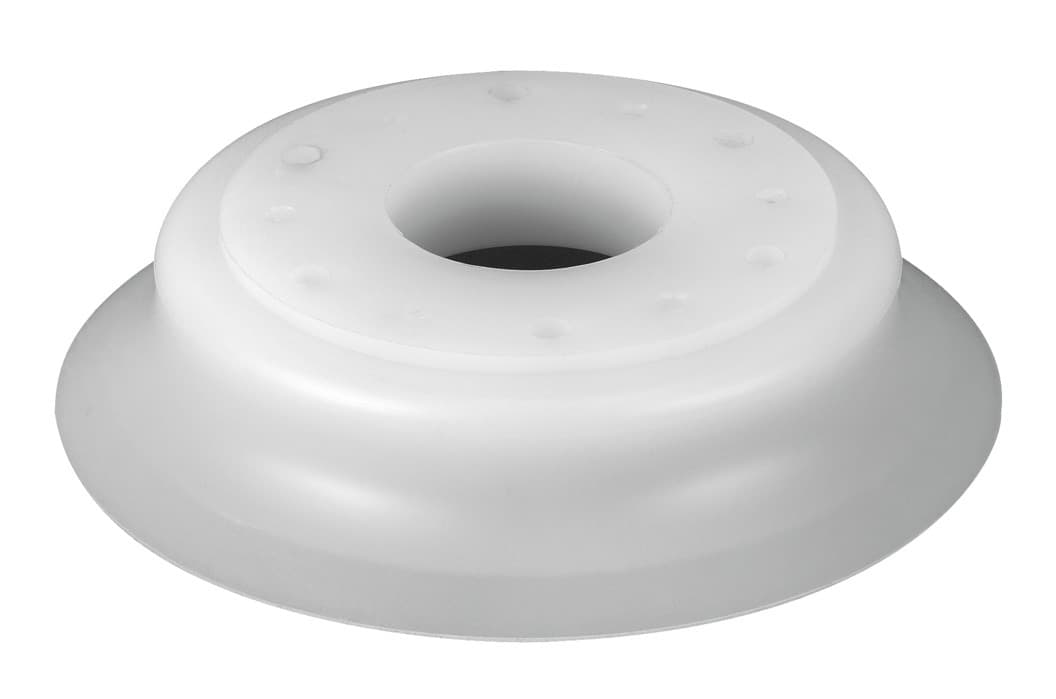

esv-80-es
Product ID:6958
Updated: 2026/4/3
Key Features
- 1Withstand temperatures from -30°C to +180°C for versatile use. 2、Deliver up to 275 N holding force for reliable grip. 3、Construct from VMQ silicone for excellent corrosion resistance. 4、Mount easily via a standard vacuum port for flexible installation. 5、Feature an extra-deep bellows shape for strong vacuum performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 160mm | Suction cup diameter | 80mm |
| Suction cup volume | 44.18cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 275N |
| Product weight | 41g | Color | Transparent |
| Shore hardness | 50 +/- 5 | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 191045 |
Specifications may be subject to change without notice
