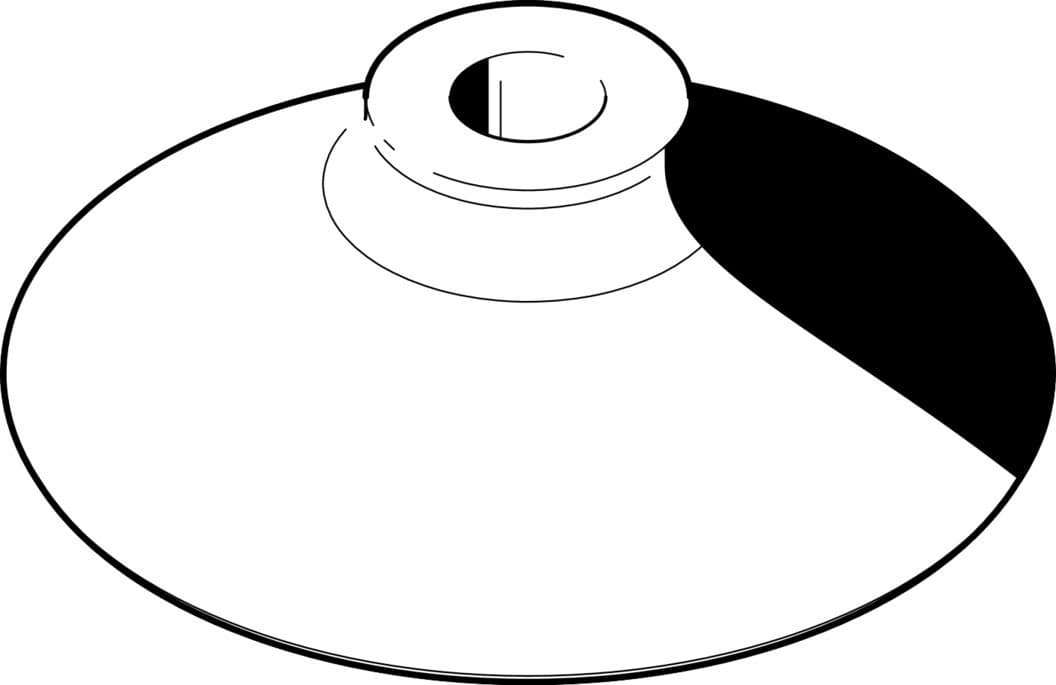

esv-80-gt
Product ID:8929
Updated: 2026/7/4
Key Features
- 1Ensure precise positioning with a 7.5mm height compensator.
- 2Deliver robust 245N holding force with an 80mm diameter.
- 3Achieve deep suction using a round, bell-shaped design.
- 4Guarantee durability and RoHS compliance with Vulkollan material.
- 5Operate reliably in temperatures from -10°C to 80°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 7.5mm | Min. workpiece radius | 100mm |
| Suction cup diameter | 80mm | Suction cup volume | 28.6cm3 |
| Mounting position | Any | Structural design | Round, bell-shaped |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 245N |
| Holding force at nominal operating pressure | 245N | Lateral force at nominal operating pressure | 99N |
| Product weight | 30.9g | Type of mounting | Via vacuum connection |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 526004 |
Specifications may be subject to change without notice
