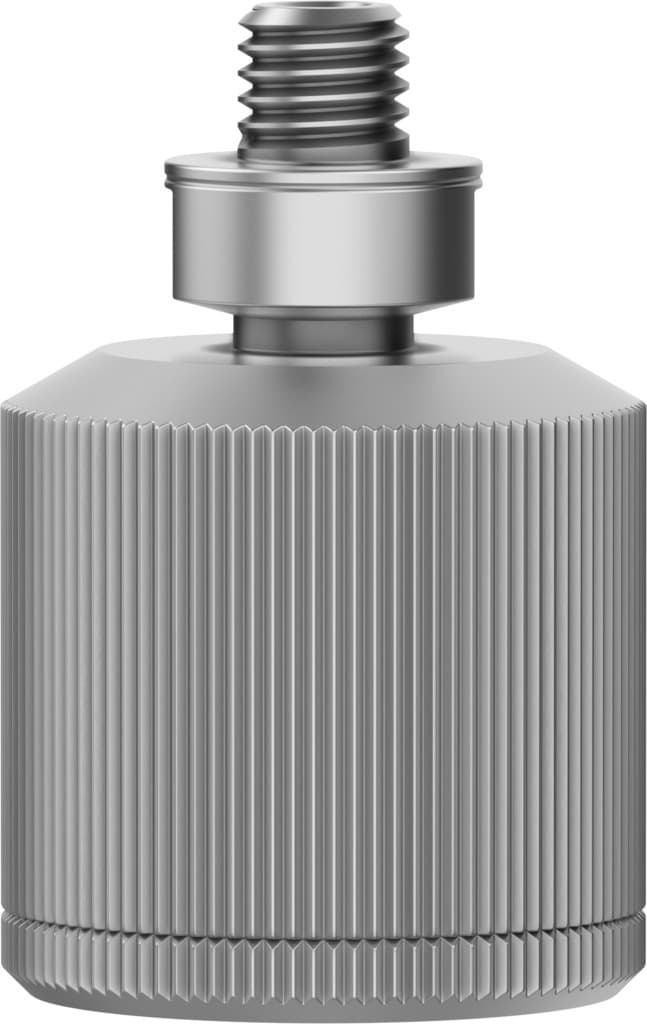

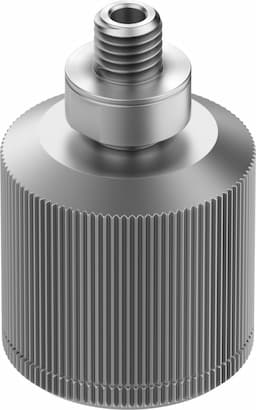

eswa-3
Product ID:6999
Updated: 2026/4/3
Key Features
- 1Provide 15° angle compensation for precise alignment. 2、Offer optional mounting positions for versatile installation. 3、Feature a robust ball joint design with low corrosion stress. 4、Ensure RoHS compliance with non-toxic materials. 5、Support a wide operating pressure range for flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Angle compensator +/- | 15deg | Mounting position | Any |
| Structural design | Ball joint | Classification of suction cup holder | Size 3 |
| Operating pressure | -0.95bar 4bar | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 9g | Type of mounting | With external thread |
| Suction cup mounting | M4 | Pneumatic connection | M4 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Aluminum Brass, nickel-plated | Manufacturer ID | 191205 |
Specifications may be subject to change without notice
