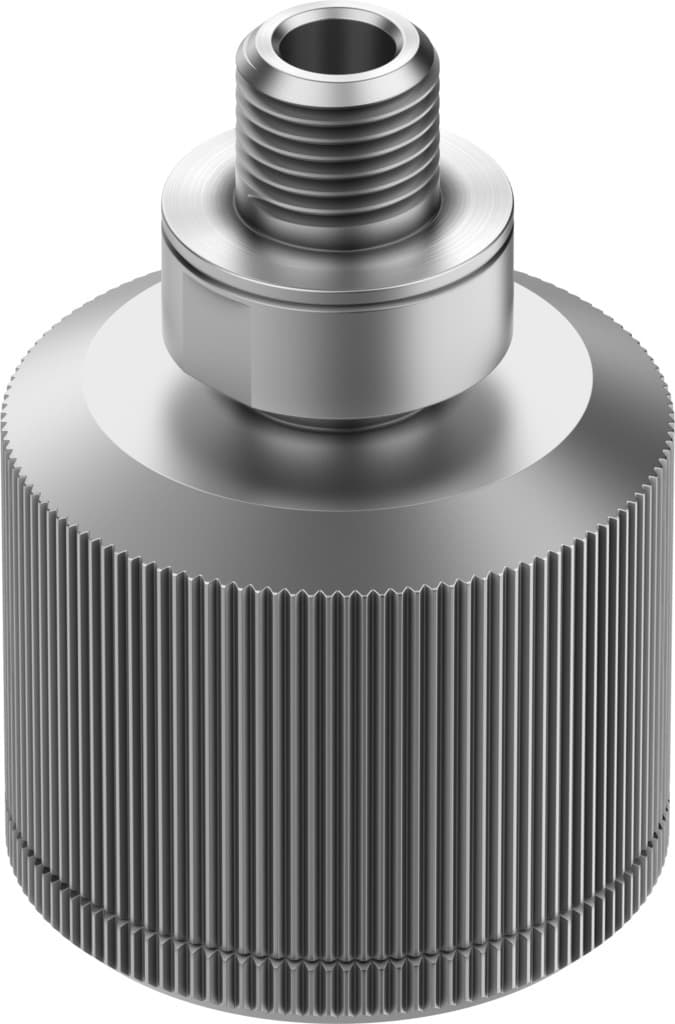

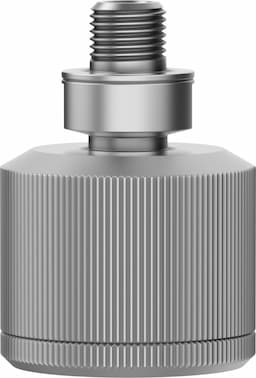

eswa-4
Product ID:7000
Updated: 2026/4/3
Key Features
- 1Achieve precise ±15° angle compensation for accurate positioning. 2、Integrate easily with optional mounting positions for design flexibility. 3、Ensure reliable performance with a durable ball joint design. 4、Withstand various conditions with low corrosion resistance class CRC 1. 5、Utilize a compact 19-gram design for lightweight pneumatic systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Angle compensator +/- | 15deg | Mounting position | Any |
| Structural design | Ball joint | Classification of suction cup holder | Size 4 |
| Operating pressure | -0.95bar 4bar | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 19g | Type of mounting | With external thread |
| Suction cup mounting | M6 | Pneumatic connection | M6 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Aluminum Brass, nickel-plated | Manufacturer ID | 191206 |
Specifications may be subject to change without notice
