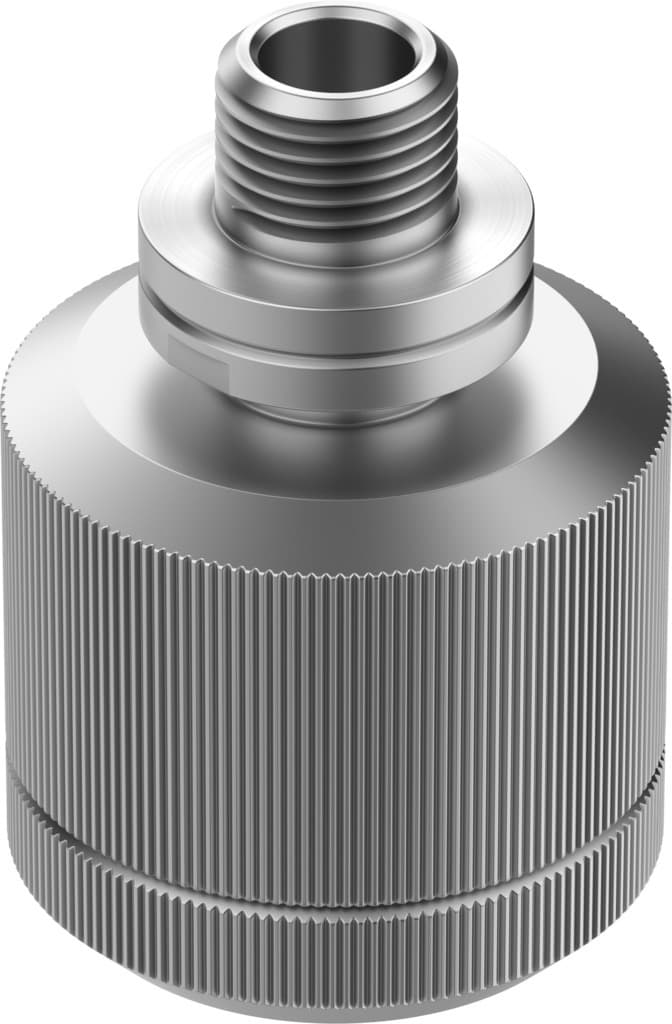

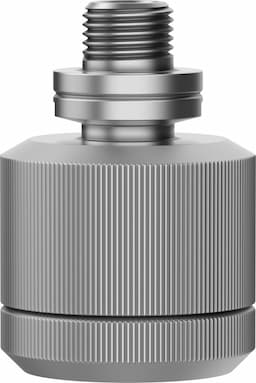

eswa-5
Product ID:7001
Updated: 2026/4/3
Key Features
- 1Provide ±15° angle compensation for precise positioning. 2、Enable flexible installation with optional arbitrary mounting. 3、Ensure reliable operation via a durable ball joint design. 4、Integrate seamlessly with size 5 suction-cup holders. 5、Operate from -0.95 to 4 bar for wide compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Angle compensator +/- | 15deg | Mounting position | Any |
| Structural design | Ball joint | Classification of suction cup holder | Size 5 |
| Operating pressure | -0.95bar 4bar | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 57g | Type of mounting | With external thread |
| Suction cup mounting | M10 | Pneumatic connection | M10 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Aluminum Brass, nickel-plated | Manufacturer ID | 191207 |
Specifications may be subject to change without notice
