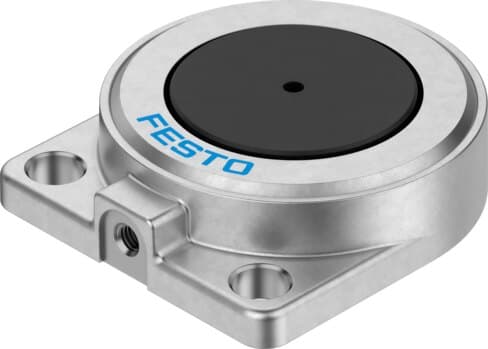

EV-12-3
Product ID:510604
Updated: 2026/7/19
Key Features
- 1Clamping surface: Diameter 12
- 2Stroke: 3 mm
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Diaphragm material | TPE-U(PU) | Housing material | Die-cast aluminum |
| Pneumatic connection | M3 | Mounting type | With through-hole |
| Product weight | 11 g | Ambient temperature | -10 / 40 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Operating medium | Compressed air, conforming to ISO 8573-1:2010 [7:-:-] |
| Operating pressure | 87 psi | Symbol | 00991208 |
| Operating mode | Single-acting | Mounting position | Optional |
| Clamping surface | Diameter 12 | Stroke | 3 mm |
Specifications may be subject to change without notice
