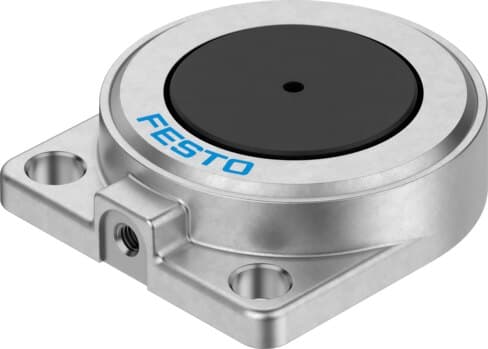

EV-50-5
Product ID:512425
Updated: 2026/5/31
Key Features
- 1Clamping surface: Ø 50
- 2Stroke: 5 mm
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Diaphragm material | TPE-U(PU) | Housing material | Die-cast aluminum |
| Pneumatic connection | M3 | Mounting type | With through-hole |
| Product weight | 68 g | Ambient temperature | -10 / 40 °C |
| Suitable for lithium-ion battery production | No metals with a copper content of more than 5% are used. Exceptions: printed circuit boards, cables, plugs and coils. | Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B1/B2-L |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:-:-] | Operating pressure | 87 psi |
| Symbol | 00991208 | Operating mode | Single acting |
| Mounting position | Optional | Clamping surface | Ø 50 |
| Stroke | 5 mm |
Specifications may be subject to change without notice
