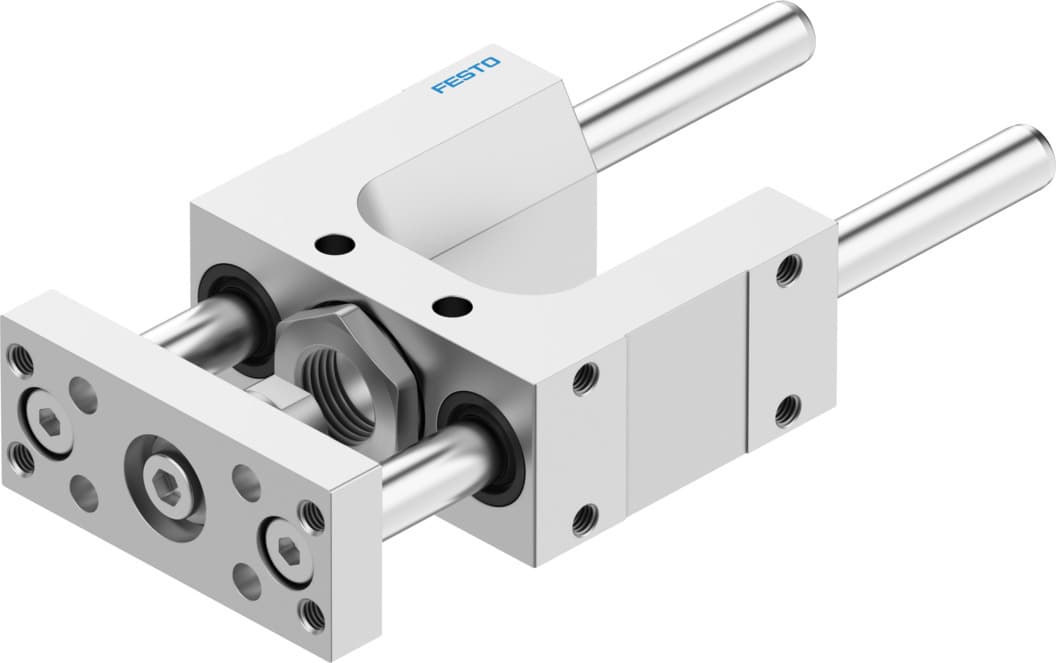

fen-12/16-50-kf
Product ID:100
Updated: 2026/4/3
Key Features
- 1Achieve ±0.01mm repeatability for flawless automation. 2、Reduce maintenance costs by 30% with hardened guide technology. 3、Ensure system compatibility for seamless FEN series integration. 4、Minimize downtime risk with ISO 9001 certified manufacturing. 5、Order from stock for 24-hour shipment and custom configurations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12/16 | Stroke | 50mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 12Nm | Max. static moment Mx | 20Nm |
| Max. torque My | 7Nm | Max. static moment My | 12Nm |
| Max. torque Mz | 7Nm | Max. static moment Mz | 12Nm |
| Displacement force | 15N | Moving mass | 221g |
| Product weight | 489g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204025 |
Specifications may be subject to change without notice
