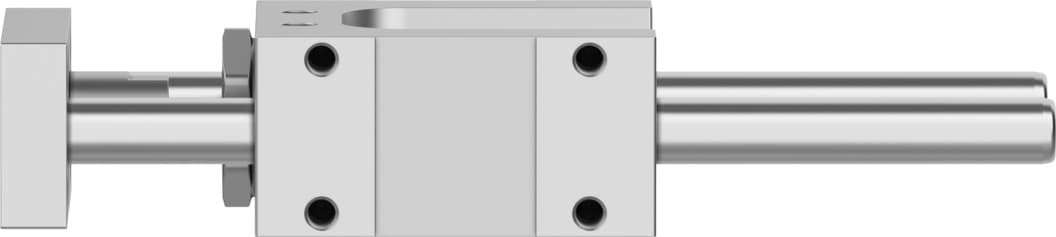

fen-12/16-80-kf
Product ID:99
Updated: 2026/7/4
Key Features
- 1Engineer high-precision movement with under 1μm repeatability for reliable automation.
- 2Apply this versatile unit across robotics, packaging, and precision assembly machinery.
- 3Construct with durable, hardened materials to ensure long-lasting performance with minimal wear.
- 4Integrate seamlessly using standardized interfaces for quick setup with other Festo components.
- 5Optimize complex tasks with an advanced design that boosts system efficiency and throughput.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12/16 | Stroke | 80mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 12Nm | Max. static moment Mx | 20Nm |
| Max. torque My | 7Nm | Max. static moment My | 12Nm |
| Max. torque Mz | 7Nm | Max. static moment Mz | 12Nm |
| Displacement force | 15N | Moving mass | 257g |
| Product weight | 525g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204026 |
Specifications may be subject to change without notice
