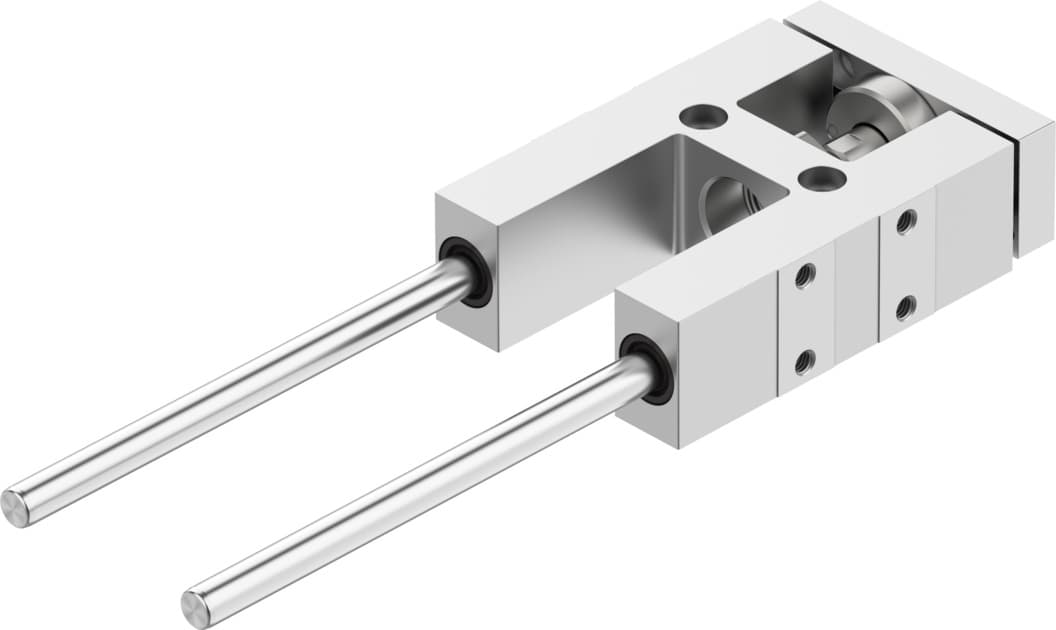

fen-20-125-gf
Product ID:88
Updated: 2026/7/4
Key Features
- 1Achieve precise h8 tolerance movement for accurate positioning.
- 2Utilize a versatile 125 mm stroke length for various machine sizes.
- 3Benefit from smooth operation with durable recirculating ball bearings.
- 4Ensure ISO 6432 standards compatibility for easy integration.
- 5Rely on high-quality construction for dependable performance under load.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Stroke | 125mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Moving mass | 419g |
| Product weight | 1023g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204048 |
Specifications may be subject to change without notice
