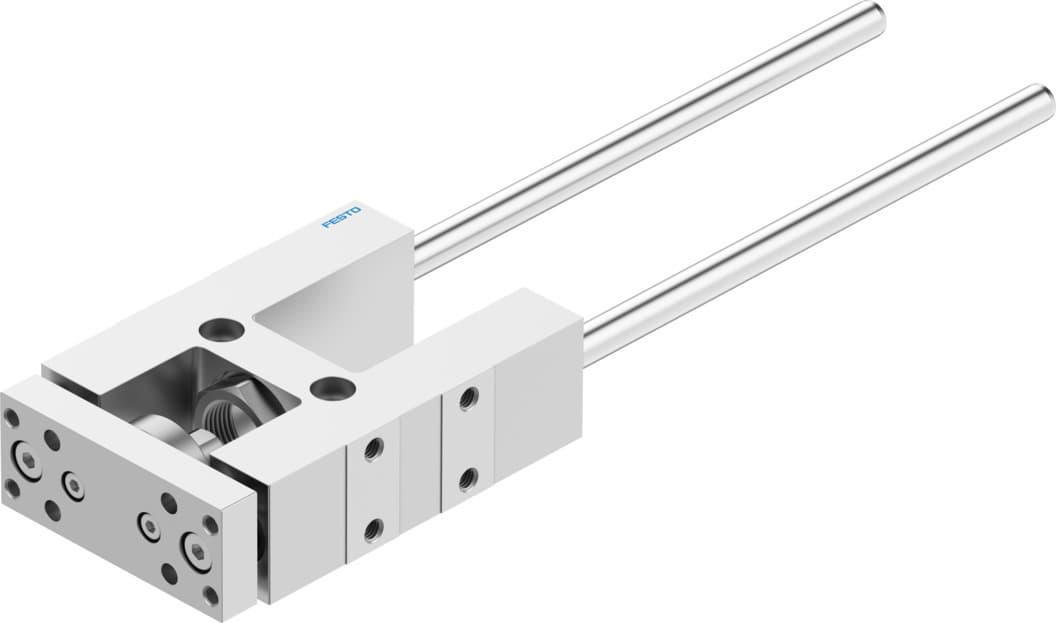

fen-20-160-gf
Product ID:87
Updated: 2026/4/3
Key Features
- 1Provide a 160mm stroke for ample linear motion range. 2、Ensure smooth operation with a recirculating ball bearing guide. 3、Mount in any position for flexible system integration. 4、Suit diverse applications with a 20mm piston diameter. 5、Withstand temperatures from -20°C to +80°C reliably.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Stroke | 160mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Moving mass | 461g |
| Product weight | 1065g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204049 |
Specifications may be subject to change without notice
