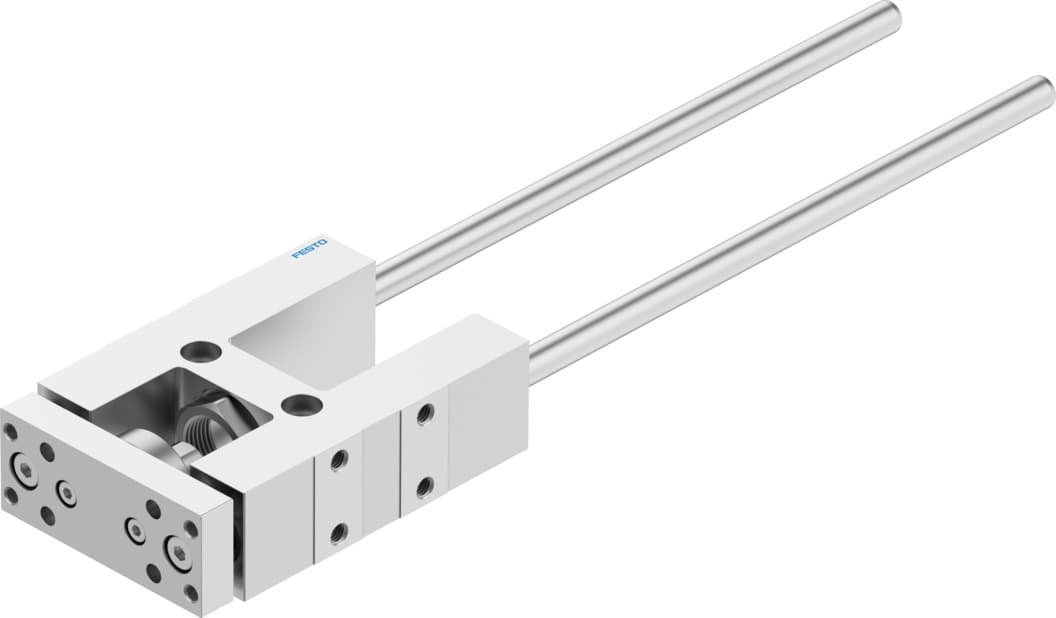

fen-20-200-gf
Product ID:86
Updated: 2026/7/4
Key Features
- 1Enhance stability and precision with the high-performance guide unit.
- 2Ensure smooth, low-friction operation using integrated plain bearings.
- 3Secure standard cylinders against piston rod rotation reliably.
- 4Apply to diverse high-precision and stability-demanding applications.
- 5Utilize durable construction for medium to heavy-duty use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Stroke | 200mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Moving mass | 509g |
| Product weight | 1113g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204050 |
Specifications may be subject to change without notice
