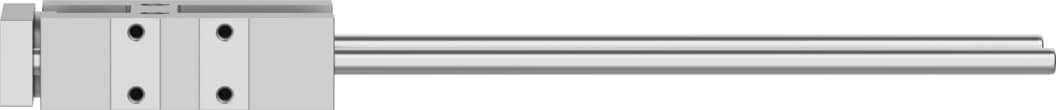

fen-20-250-kf
Product ID:97
Updated: 2026/4/3
Key Features
- 1Ensure smooth motion with a 250 mm stroke recirculating ball bearing guide. 2、Install flexibly via female thread for easy integration. 3、Operate reliably from -20°C to 80°C in diverse environments. 4、Benefit from a lightweight design at 828 g plus 12 g per 10 mm. 5、Meet RoHS standards for environmental and regulatory compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Stroke | 250mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
| Max. torque My | 20Nm | Max. static moment My | 31Nm |
| Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
| Displacement force | 15N | Moving mass | 569g |
| Product weight | 1128g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204032 |
Specifications may be subject to change without notice
