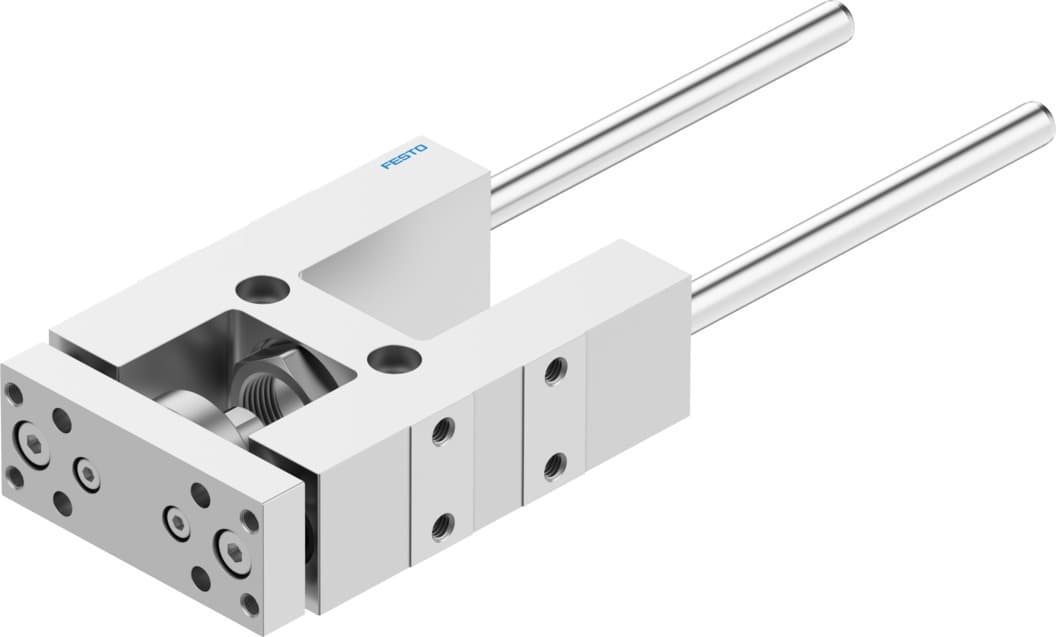

fen-20- -gf
Product ID:7009
Updated: 2026/4/3
Key Features
- 1Ensure smooth and precise movement for pneumatic cylinders. 2、Extend system lifespan with durable recirculating ball bearing guides. 3、Operate reliably in temperatures from -20°C to +80°C. 4、Simplify installation using versatile through-hole mounting options. 5、Integrate seamlessly into diverse industrial handling applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Stroke | 2mm 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Additional moving mass per 10?mm stroke | 12g |
| Basic weight with 0?mm stroke | 873g | Additional weight per 10?mm stroke | 12g |
| Center of gravity of moving mass with 0 mm stroke | 42mm | Center of gravity of moving mass with 10 mm stroke | 4.7mm |
| Type of mounting | With internal thread | Note on materials | RoHS-compliant |
| Material of guide component | High-alloy steel | Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 19169 |
Specifications may be subject to change without notice
