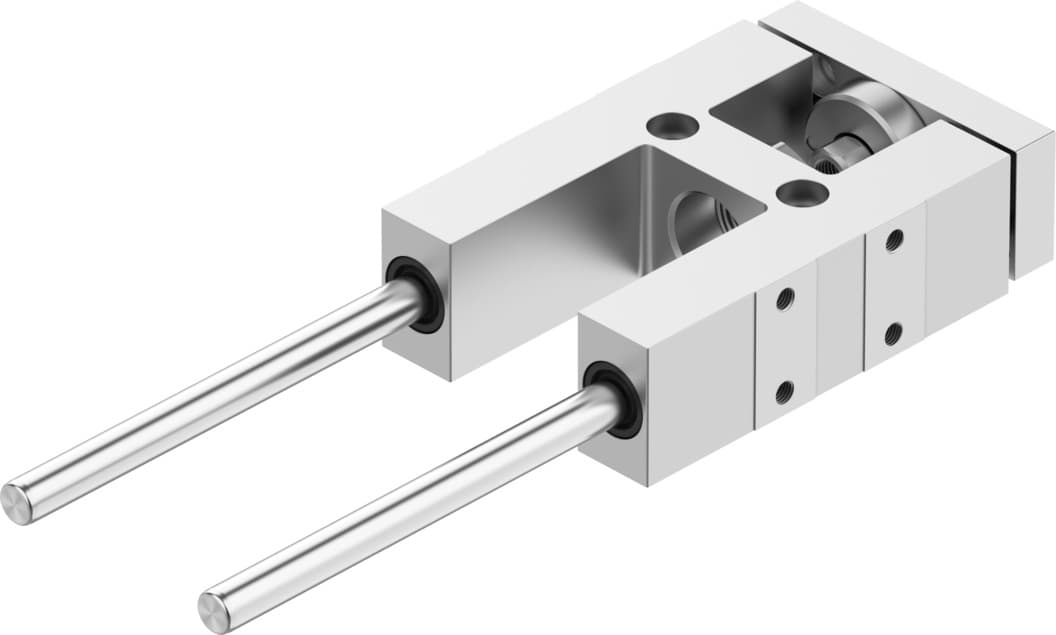

fen-25-100-gf
Product ID:83
Updated: 2026/7/4
Key Features
- 1Secure standard cylinders against piston rod rotation for precise linear motion.
- 2Offer flexibility with stroke lengths ranging from 2 mm to 250 mm.
- 3Ensure durability with high-quality aluminum guides and sintered bronze bearings.
- 4Simplify integration with a straightforward mounting design to reduce setup time.
- 5Provide safe operation in hazardous areas with explosion protection features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke | 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Moving mass | 389g |
| Product weight | 986g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204054 |
Specifications may be subject to change without notice
