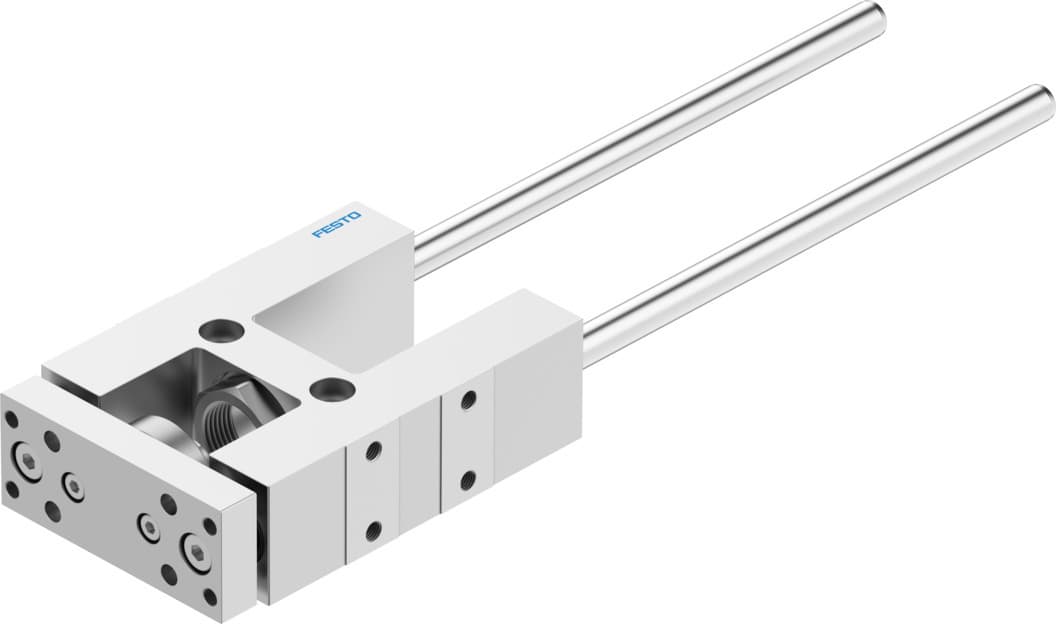

fen-25-160-kf
Product ID:92
Updated: 2026/4/3
Key Features
- 1Ensure smooth motion with a recirculating ball bearing guide. 2、Achieve high precision across a versatile 160mm stroke length. 3、Integrate easily using standardized dimensions and interfaces. 4、Deploy immediately with factory-fresh packing and full documentation. 5、Operate reliably in temperatures from -20°C to +80°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke | 160mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
| Max. torque My | 20Nm | Max. static moment My | 31Nm |
| Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
| Displacement force | 15N | Moving mass | 461g |
| Product weight | 1005g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204038 |
Specifications may be subject to change without notice
