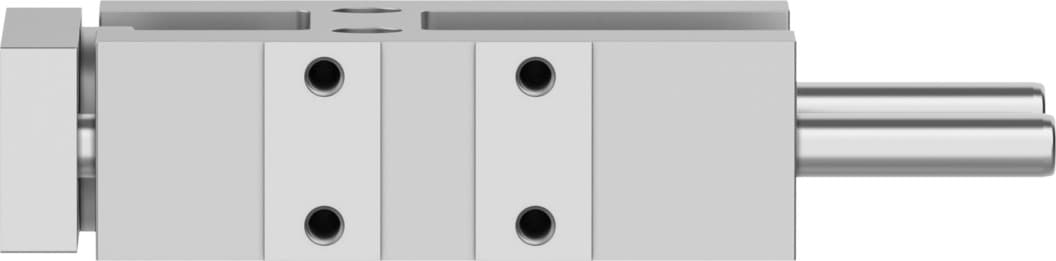

fen-25-25-kf
Product ID:96
Updated: 2026/4/3
Key Features
- 1Ensure smooth and precise movement with a recirculating ball bearing guide. 2、Gain durability and wear resistance from tempered steel construction. 3、Achieve versatile positioning with a stroke range from 2 mm to 250 mm. 4、Operate safely in hazardous areas with integrated explosion protection. 5、Simplify system integration via female thread mounting for easy installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke | 25mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
| Max. torque My | 20Nm | Max. static moment My | 31Nm |
| Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
| Displacement force | 15N | Moving mass | 299g |
| Product weight | 843g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204033 |
Specifications may be subject to change without notice
