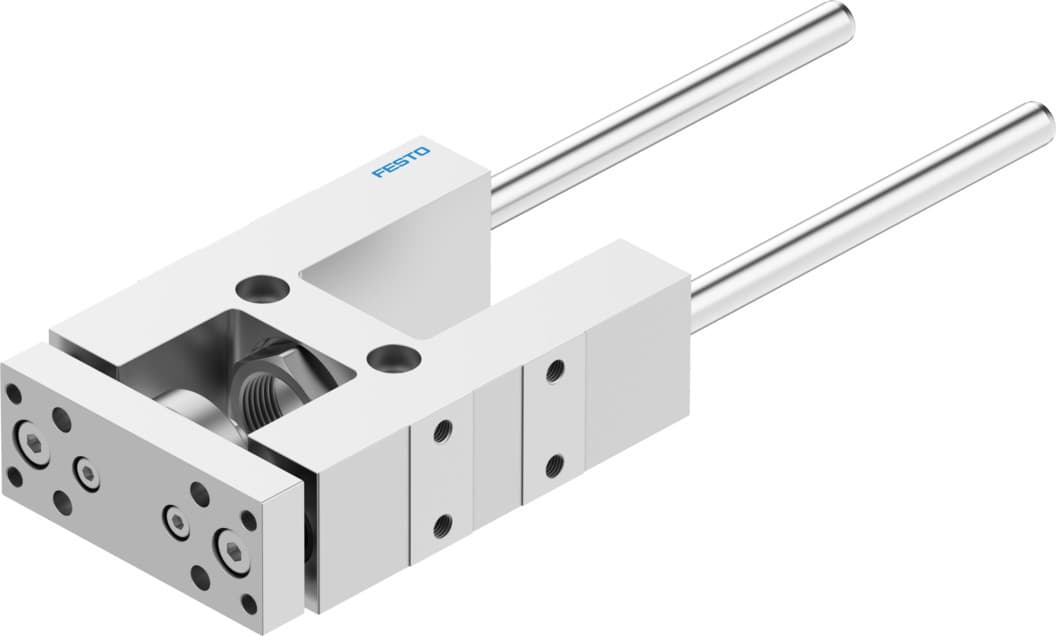

fen-25- -gf
Product ID:7010
Updated: 2026/4/3
Key Features
- 1Engineer high-precision components for smooth, reliable pneumatic operation. 2、Utilize a versatile 2 mm to 250 mm stroke length for various applications. 3、Construct with high-alloy steel and anodised aluminium for robustness and durability. 4、Design with explosion protection for safe use in hazardous environments. 5、Adhere to RoHS and VDMA standards for environmental safety and performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke | 2mm 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Additional moving mass per 10?mm stroke | 12g |
| Basic weight with 0?mm stroke | 866g | Additional weight per 10?mm stroke | 12g |
| Center of gravity of moving mass with 0 mm stroke | 42mm | Center of gravity of moving mass with 10 mm stroke | 4.7mm |
| Type of mounting | With internal thread | Note on materials | RoHS-compliant |
| Material of guide component | High-alloy steel | Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 19170 |
Specifications may be subject to change without notice
