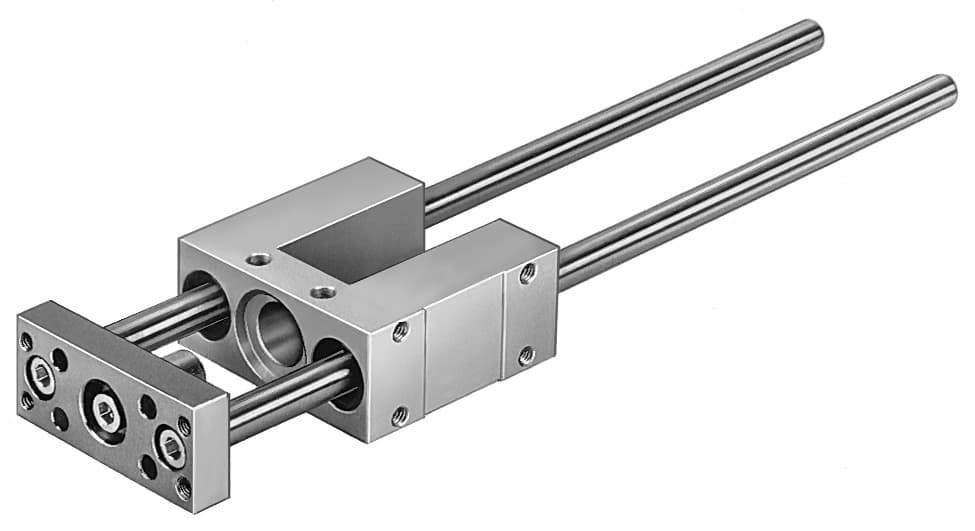

fen-8/10- -gf
Product ID:8247
Updated: 2026/7/16
Key Features
- 1Ensure smooth motion with recirculating ball bearing guides.
- 2Achieve flexible installation via optional mounting positions.
- 3Reduce wear and tear for enhanced durability.
- 4Operate safely with integrated explosion protection features.
- 5Configure the unit to meet specific application requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8/10 | Stroke | 1mm 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 15N | Additional moving mass per 10?mm stroke | 8g |
| Basic weight with 0?mm stroke | 332g | Additional weight per 10?mm stroke | 8g |
| Center of gravity of moving mass with 0 mm stroke | 30mm | Center of gravity of moving mass with 10 mm stroke | 4.9mm |
| Type of mounting | With internal thread | Note on materials | RoHS-compliant |
| Material of guide component | High-alloy steel | Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 35196 |
Specifications may be subject to change without notice
