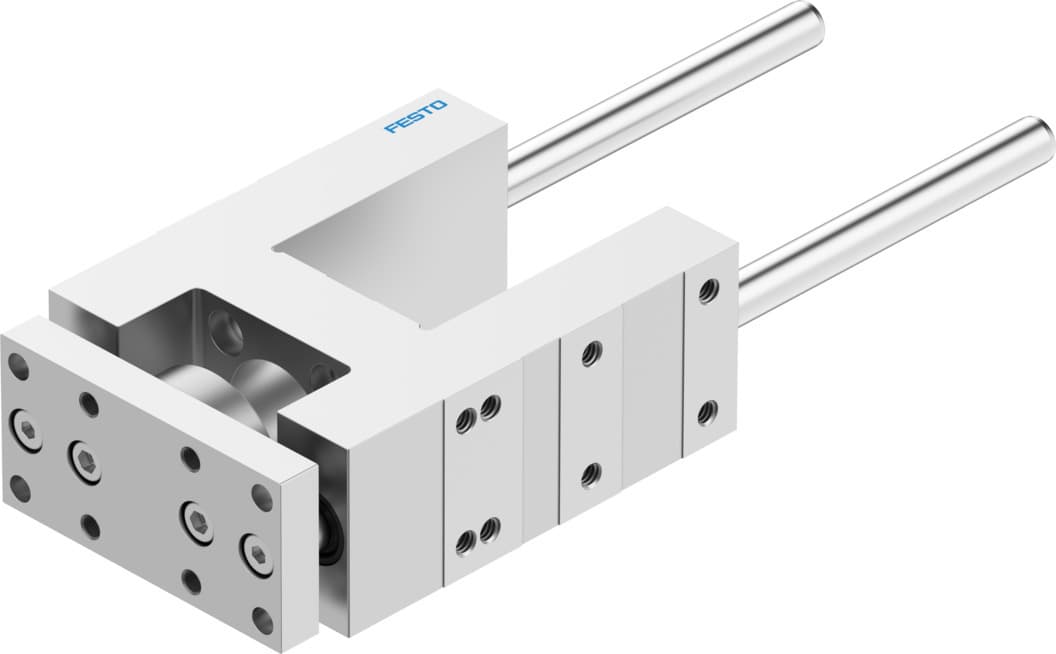

feng-32-100-gf
Product ID:77
Updated: 2026/4/3
Key Features
- 1Achieve precise linear motion with strokes from 10 mm to 500 mm. 2、Ensure safe operation in hazardous areas with explosion protection. 3、Mount the guide unit in any position for flexible installation. 4、Benefit from durable high-alloy steel and aluminum construction. 5、Meet industry standards like LABS and VDMA24364-B2-L.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 648g |
| Product weight | 1740g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204061 |
Specifications may be subject to change without notice
