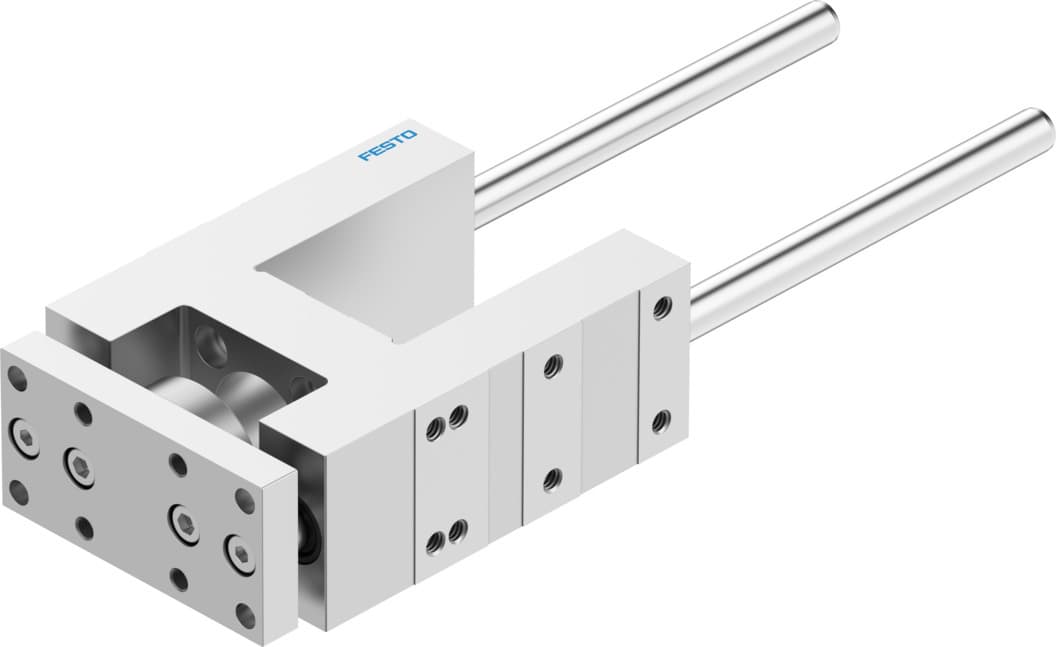

feng-32-125-gf
Product ID:76
Updated: 2026/7/4
Key Features
- 1Achieve high precision and versatile application suitability.
- 2Customize stroke lengths from 10 to 500 mm.
- 3Ensure smooth operation with a low-friction plain-bearing guide.
- 4Rely on robust high-alloy steel construction for durability.
- 5Guarantee compatibility with ISO 6432 and Festo standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 125mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 690.5g |
| Product weight | 1782.5g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204062 |
Specifications may be subject to change without notice
